HP Designjet T Series — Service Manual 6-147
Removal and Installation - Scan-Axis Motor (T1120/T1120ps)

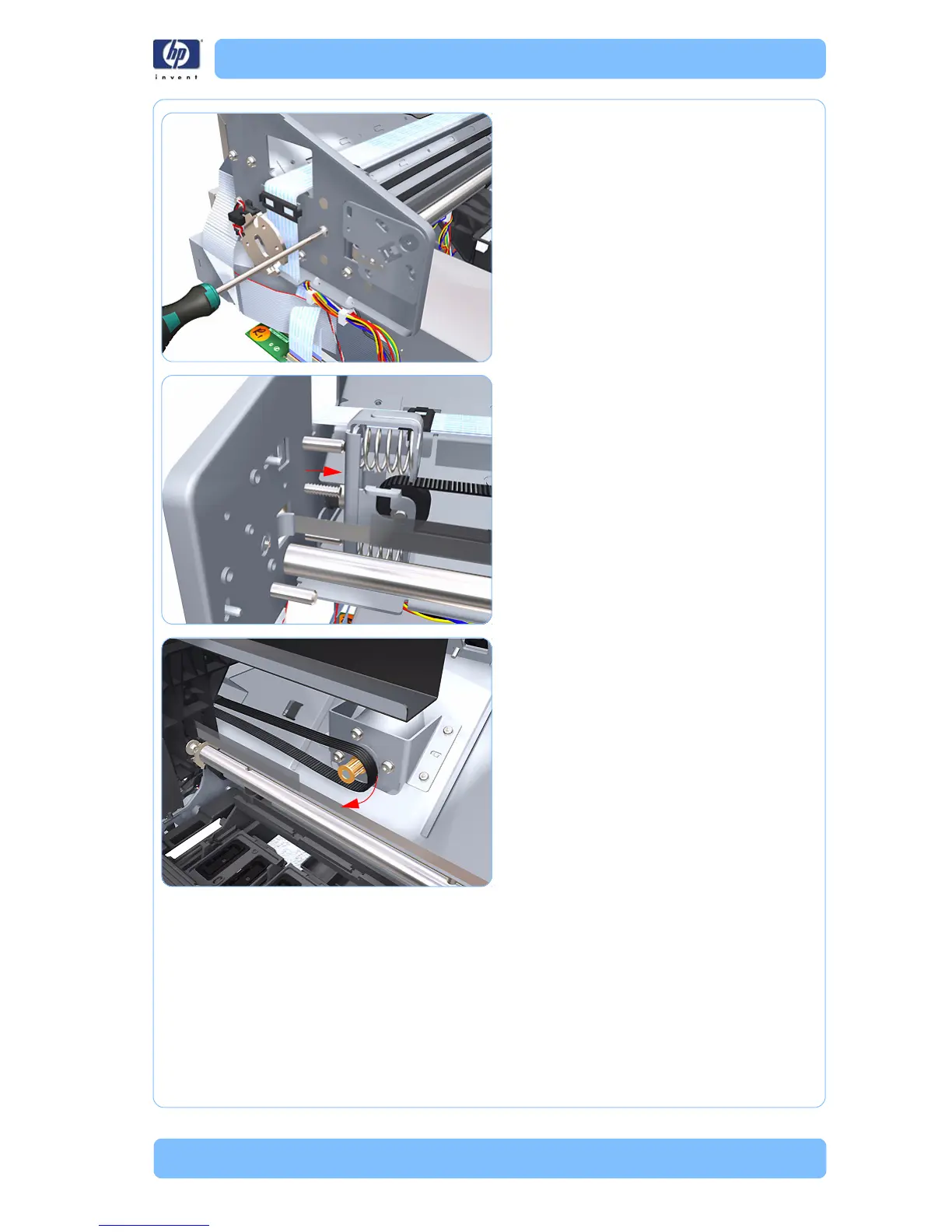

5. Loosen the T-15 screw Belt Tensioner to the
printer to remove the tension from the belt.
6. Leave the Belt Tensioner in place.
7. Remove the Belt Assembly from the drive
wheel of the Scan-Axis Motor.
