Removal and Installation - Carriage PCA (T1100/T1100ps/T610)

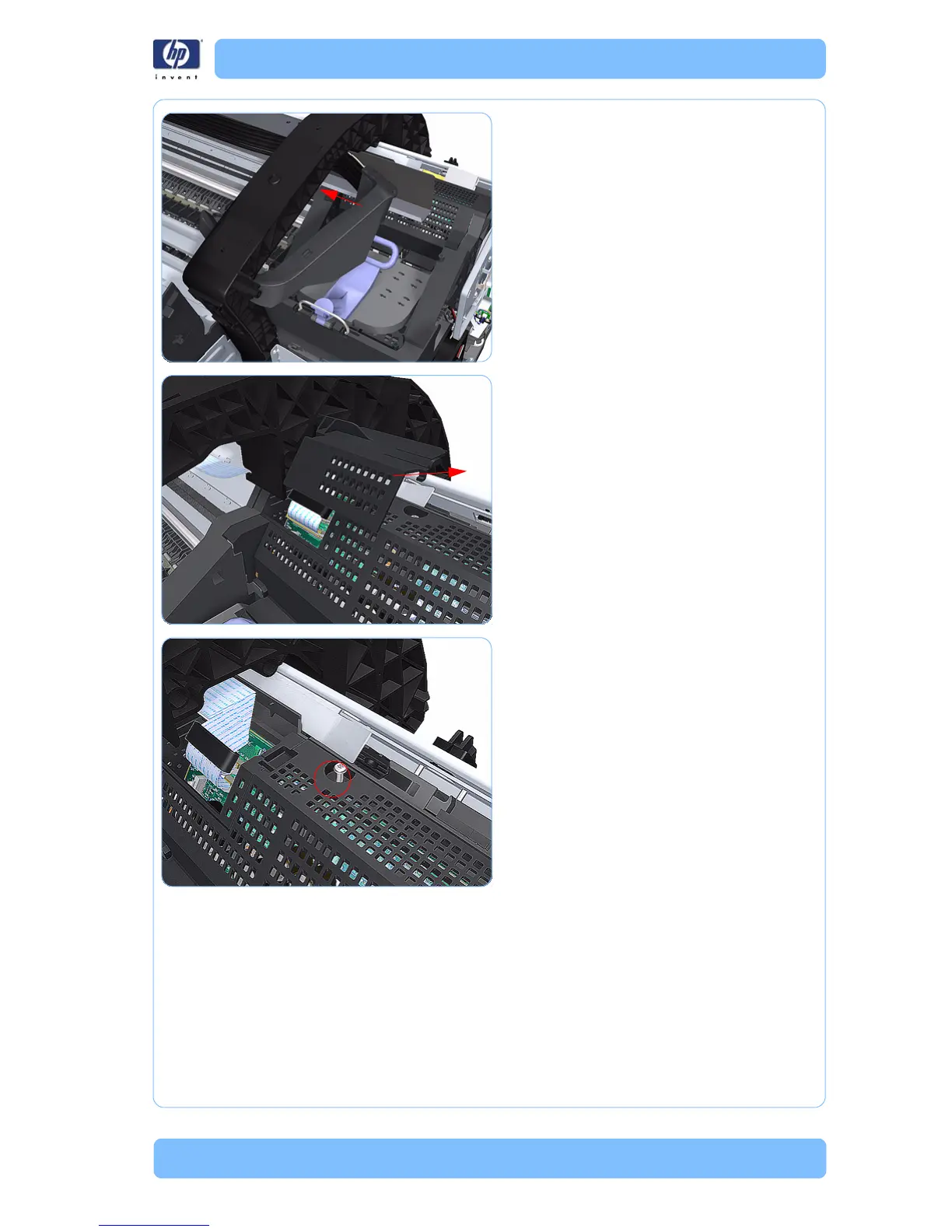

12. Carefully move the Ink Supply Tubes into
the print path.
13. Unclip and slide off the small cover of the
Carriage Assembly Carriage PCA.
14. Remove one T-15 screws that secures the
large cover of the Carriage PCA.
To Next Page
