Removal and Installation - Formatter
Formatter
Removal

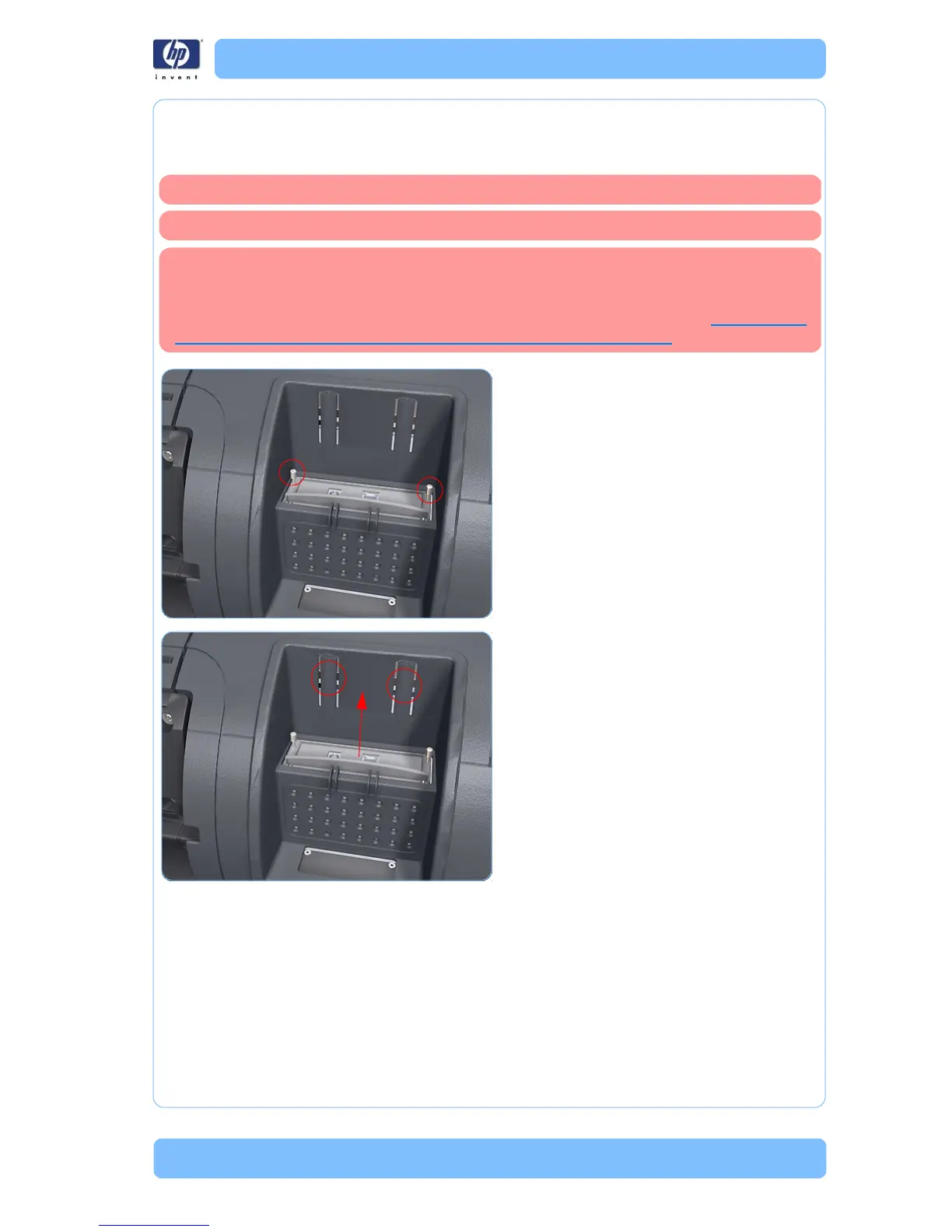

1. Fully loosen the two locking thumbscrews
that secure the Formatter in the printer.
2. Begin lifting the Formatter from the printer.
Push the clips and provide upward force at
the same time.
Switch off the printer and remove the power cable.
Never use a previously used Formatter. This can cause serious problems.
Never replace the Formatter/Hard Disc Drive at the same time as the
Printmech PCA (T1100/T1100ps/T610) or Media Advance Encoder PCA (T1120/
T1120ps). If you must replace both parts, always replace one, restart the
machine, and then follow the procedure to replace the other. See Replacing the
PrintMech PCA, Media Advance Encoder PCA and Formatter on page 2-3.
