HP Designjet T1100

HP Designjet T Series — Service Manual 6-229
Removal and Installation - Pinchwheel Assembly
Pinchwheel Assembly
Removal
1. Remove the Window on page 6-12.
2. Re
move the Spindle on page 6-79.
3. Re
move the Left Roll Guide on page 6-94.
4. Re
move the Right Roll Guide on page 6-
95.

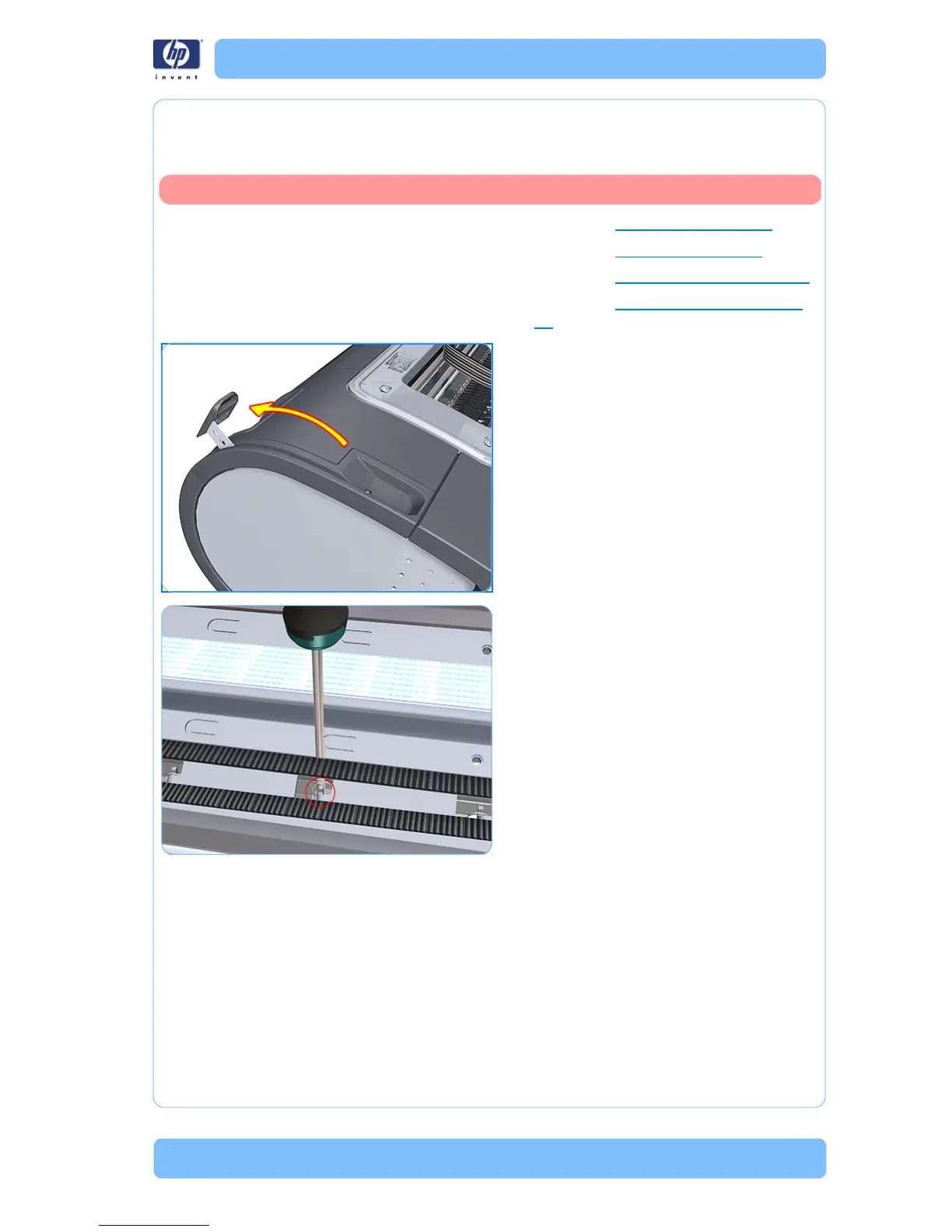

5. Raise the Media Lever.
6. Use the Pinchwheel Insertion Tool to
remove the spring from the attachment on
the printer.
Switch off the printer and remove the power cable.
