HP Designjet T1100

HP Designjet T Series — Service Manual 6-237

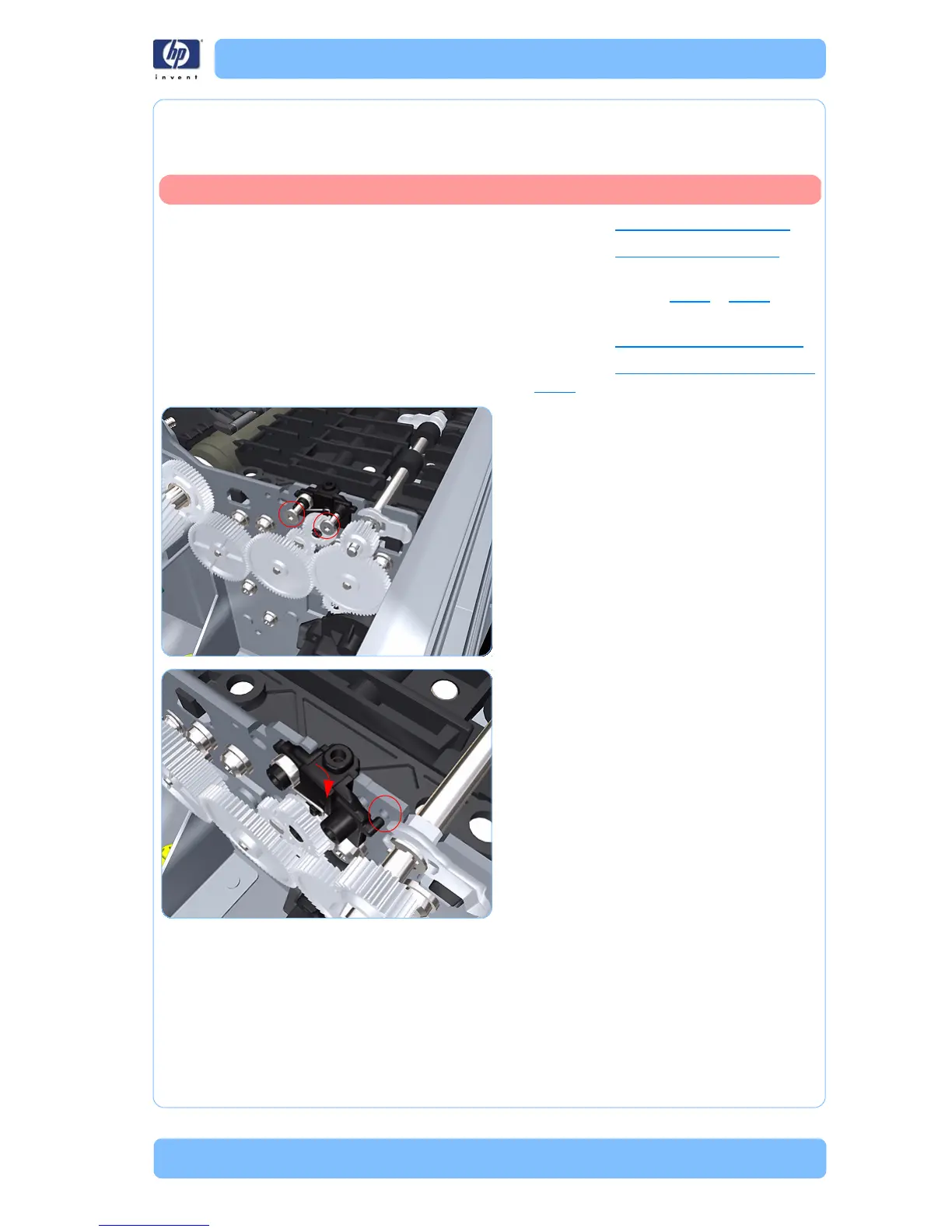

Removal and Installation - Left Starwheel Lifter
Left Starwheel Lifter
Removal
1. Remove the Front Cover on page 6-16.
2. Re
move the Left Cover on page 6-30.
3. R
emove the Electronics Module Main PCA
and PSU. See page
6-202or 6-205
depending on the printer model.
4. Re
move the Left Spittoon on page 6-214.
5. Re
move the Starwheel Assembly on page
6-208.
6. Remove two T-8 screws that secure the Left
Starwheel Lifter to the printer.
7. Rotate the Left Starwheel Lifter sufficiently to
disengage the right attachment lug.
Switch off the printer and remove the power cable.
