HP Designjet T Series — Service Manual 6-242

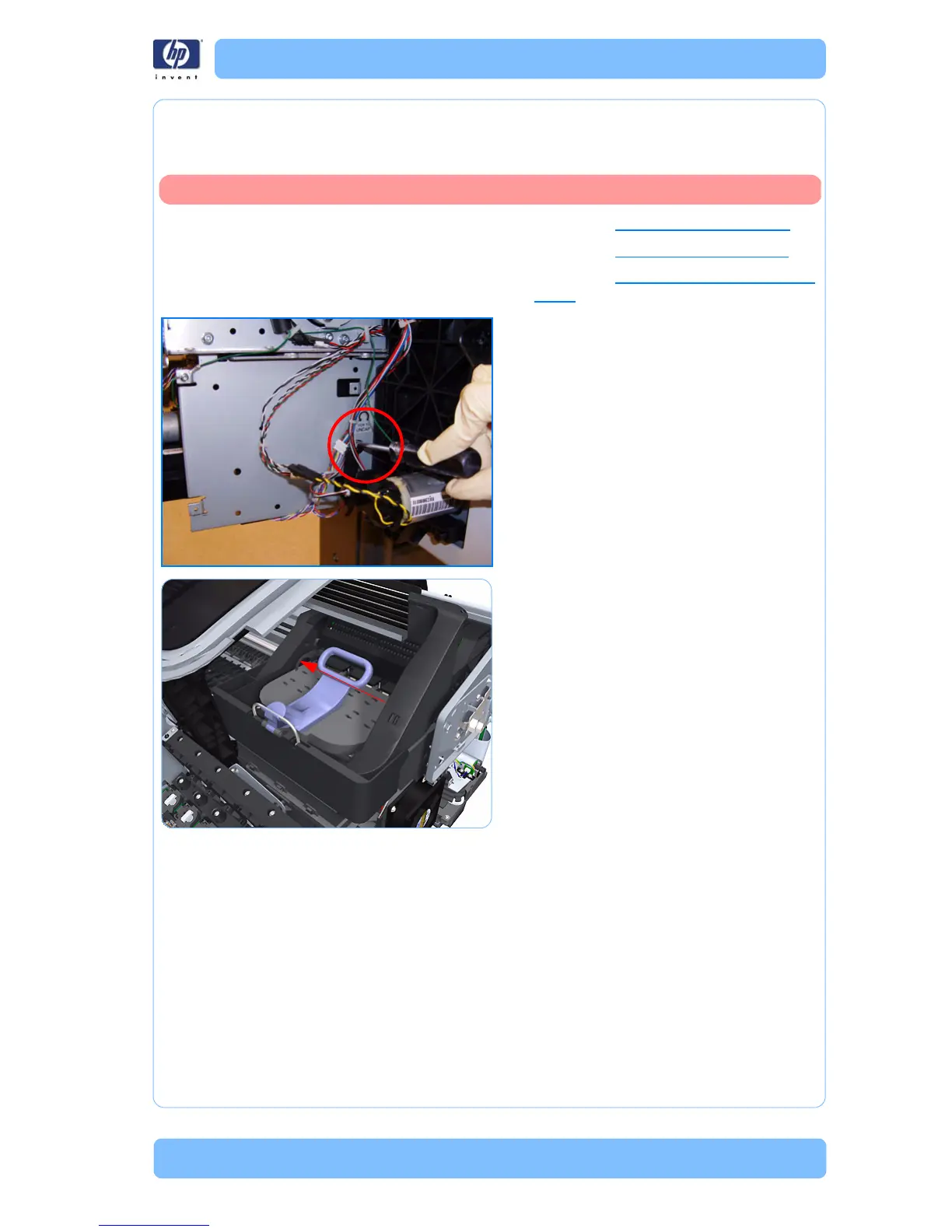

Removal and Installation - Right Starwheel Lifter (T1120/T1120ps)
Right Starwheel Lifter (T1120/T1120ps)
Removal
1. Remove the Front Cover on page 6-16.
2. Re
move the Right Cover on page 6-27.
3. Re
move the Starwheel Assembly on page
6-208.
4. Loosen the T-10 uncapping screw
sufficiently so you can manually move the
Carriage Assembly in step 8.
5. Push the Carriage Assembly into the print
path.
Switch off the printer and remove the power cable.
