HP Designjet T790 Series

The printer’s main components
The following front and rear views of the 1118mm (44 in) printer illustrate the main components. The
610 mm (24 in) printer (not shown) has the same components in a narrower body.

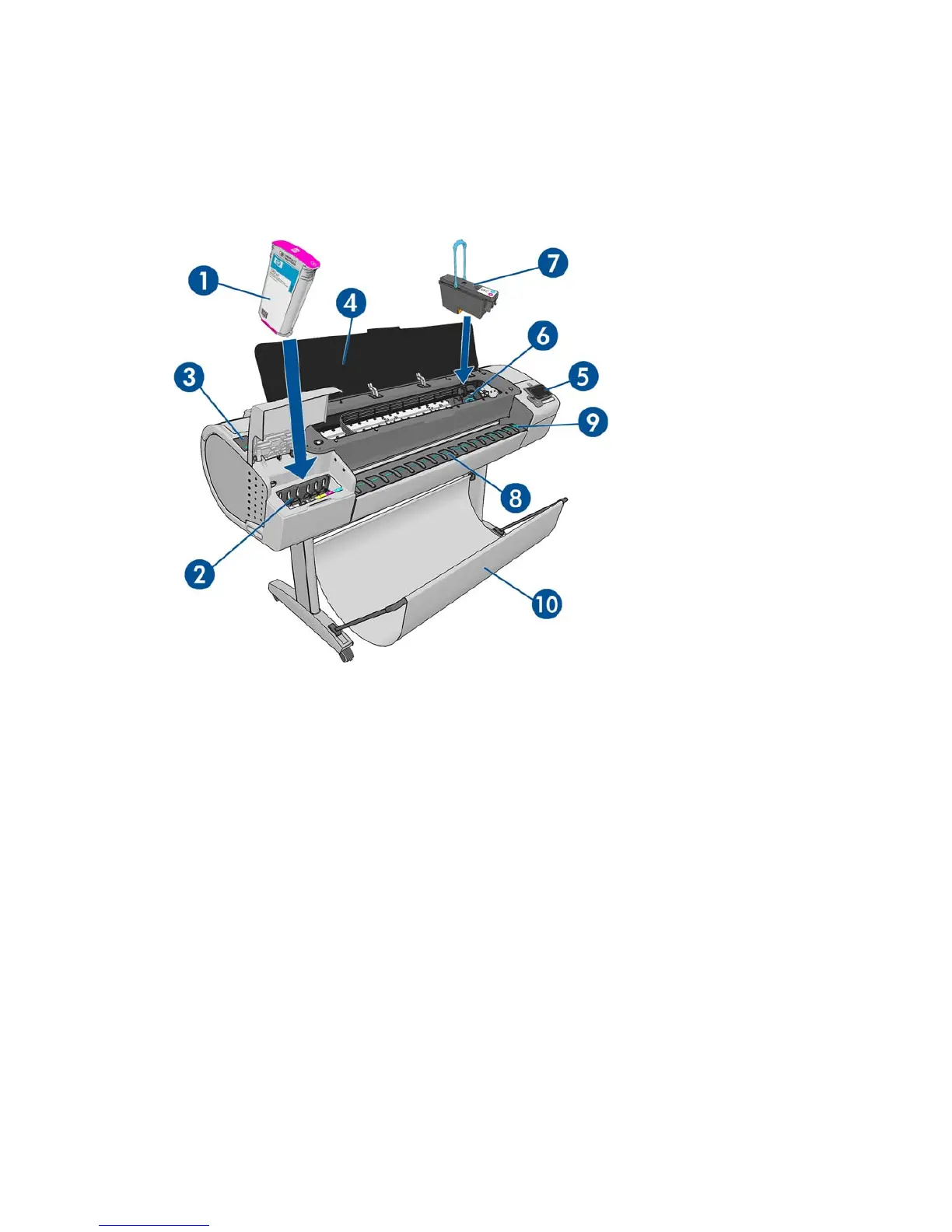

Front view
1. Ink cartridge
2. Ink cartridge slots
3. Blue lever
4. Window
5. Front panel
6. Printhead carriage
7. Printhead
8. Output tray
9. Paper alignment lines
10. Basket
