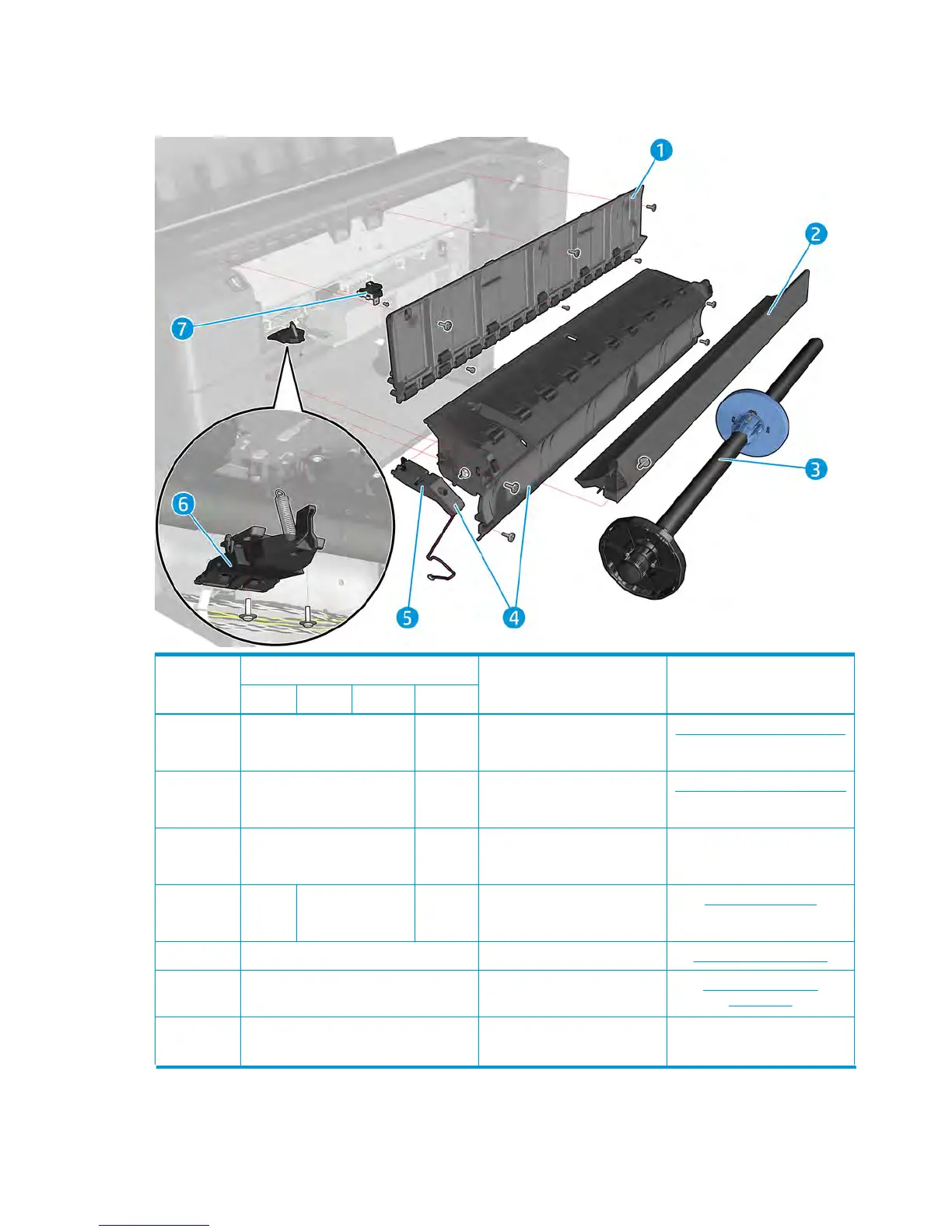

Paper Path Assemblies (Front)
Part number Description Cross-reference
T920 T1500 T2500 T3500
1 CR357-67033 B9E24-6
7021
Vertical Media Guide A Vertical Media Guide on page 329
2 CR357-67032 B9E24-6
7008
Converger Assy Converger Assembly on page 256
3 CR357-67040 B9E24-6
7007
Spindle 36 Assy
4
CR357-67030
B9E24-6
7006
Cleanout Assy Cleanout on page 257
5 CR357-67031 Media Sensor Media Sensor on page 320
6 CR357-67004 Pinch Wheel Assy
Pinch Wheel Assembly
on page 339
7 CH538-67074 Center support Assy Center Support on page 331
226 Chapter 5 Parts and diagrams ENWW
