Service Parts
Part number Description Cross-reference
1-01a CR359-67023 Scanner Controller Unit (except T3500) Scanner Controller Unit (SUP) on page 393
1-01b B9E24-67020 Scanner Controller Unit (T3500 and compatible
with T2500)
Scanner Controller Unit (SUP) on page 393
2-01 CR358-60075 CIS Module Assembly CIS Modules on page 395
N/A CR359-67015 FFC Cable Set-Scanner CIS FFC Cables on page 396
2-03 CR359-67018 Paper/Lid Sensor (1 pcs.) Paper and Lid Sensors on page 401

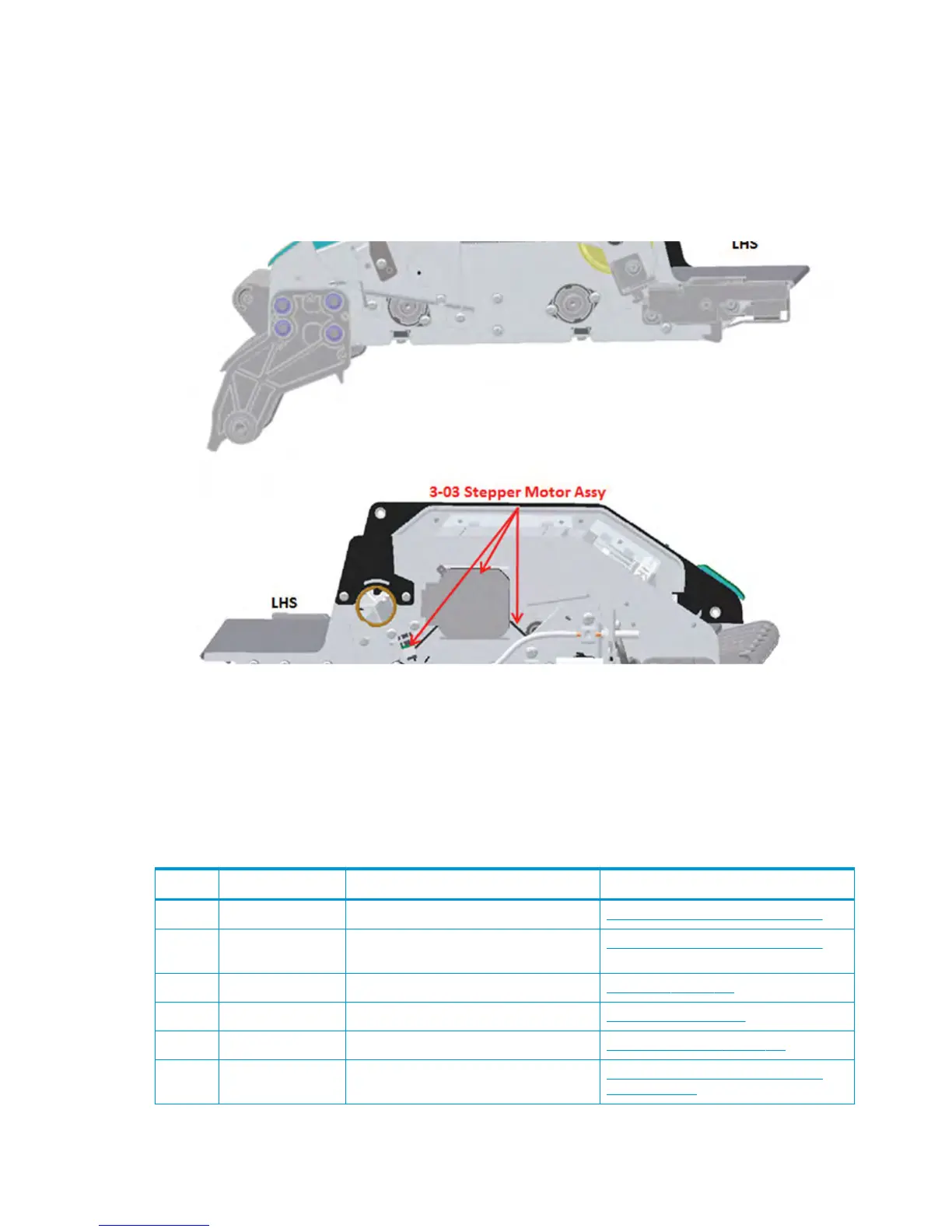

3-03 CR359-67016 Stepper Motor Assembly (including taco
sensor)
Stepper Motor Assembly (taco sensor, and
belt) on page 398
236 Chapter 5 Parts and diagrams ENWW
