6 Paper stops
7 Automatic document feeder (ADF)
8 ADF output tray
9 ADF input tray
10 Document load/detect LED
11 Paper guides

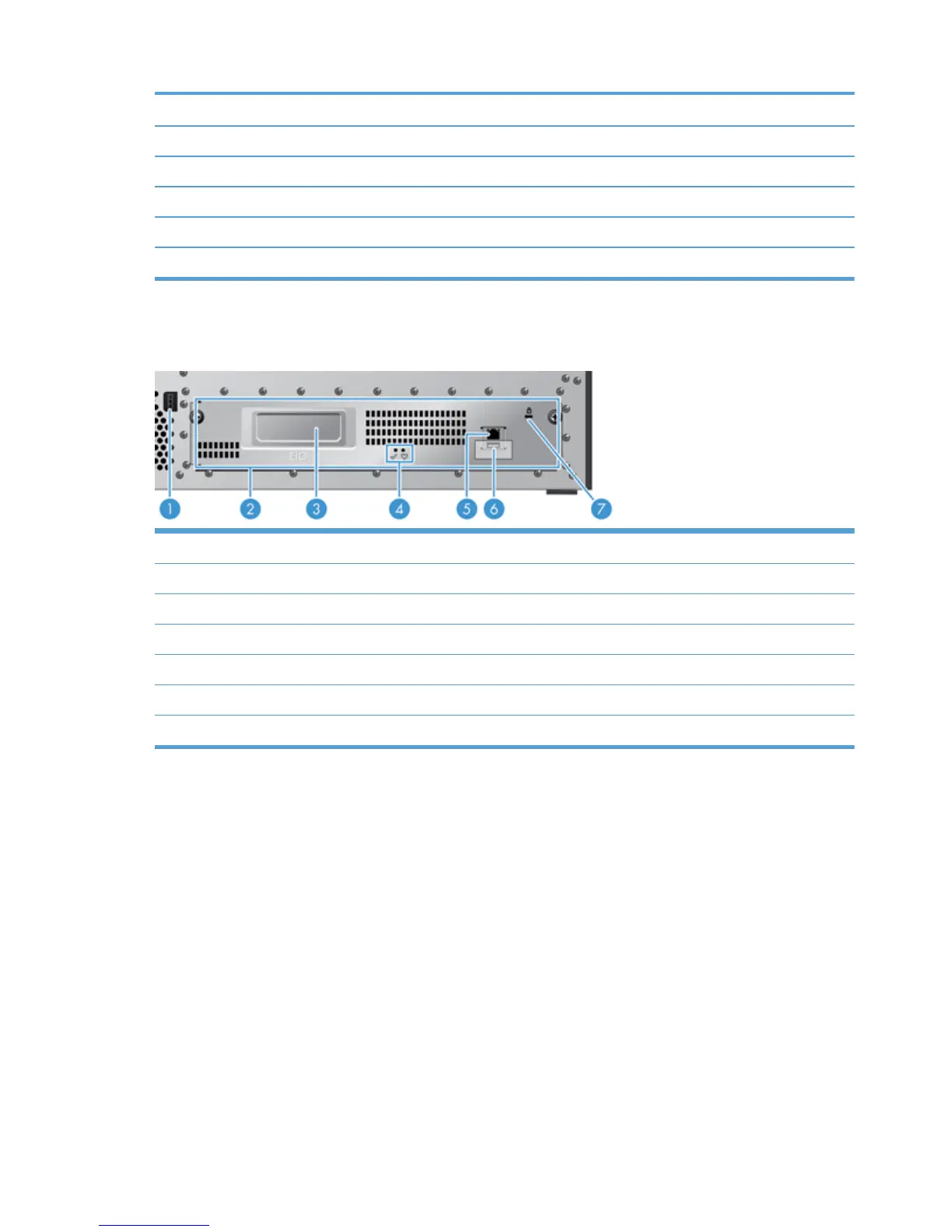

Back view
1 Power connector
2 Rear panel drawer assembly
3 EIO card slot
4 Formatter status LEDs (both are green; under normal conditions, the left LED is on steady and the right LED blinks)
5Ethernet port
6 USB host port (under user-removable label)
7 Slot for a cable-type security lock
Sleep Mode
The scanner will enter Sleep Mode after 15 minutes of inactivity. To exit Sleep Mode, do any one of the
following:
●
Press any button
●
Touch the touch screen
●
Lift the flatbed scanner lid
●
Connect a USB device
4 Chapter 1 Product basics ENWW
