HP DL580 - ProLiant - G4 - Media Board Removal; Media Pass-Through Board Removal

Removal and replacement procedures 50
Removing the media board
1. Power down the server (on page 29).
2. Extend the server from the rack, if applicable ("Extending the server from the rack" on page 27).
3. Remove the access panel ("Removing the access panel" on page 29).
4. Remove all media drives and media drive blanks ("Removing a diskette, DVD, CD-RW drive or
blank" on page 32).
5. Disconnect all cabling from the media board.

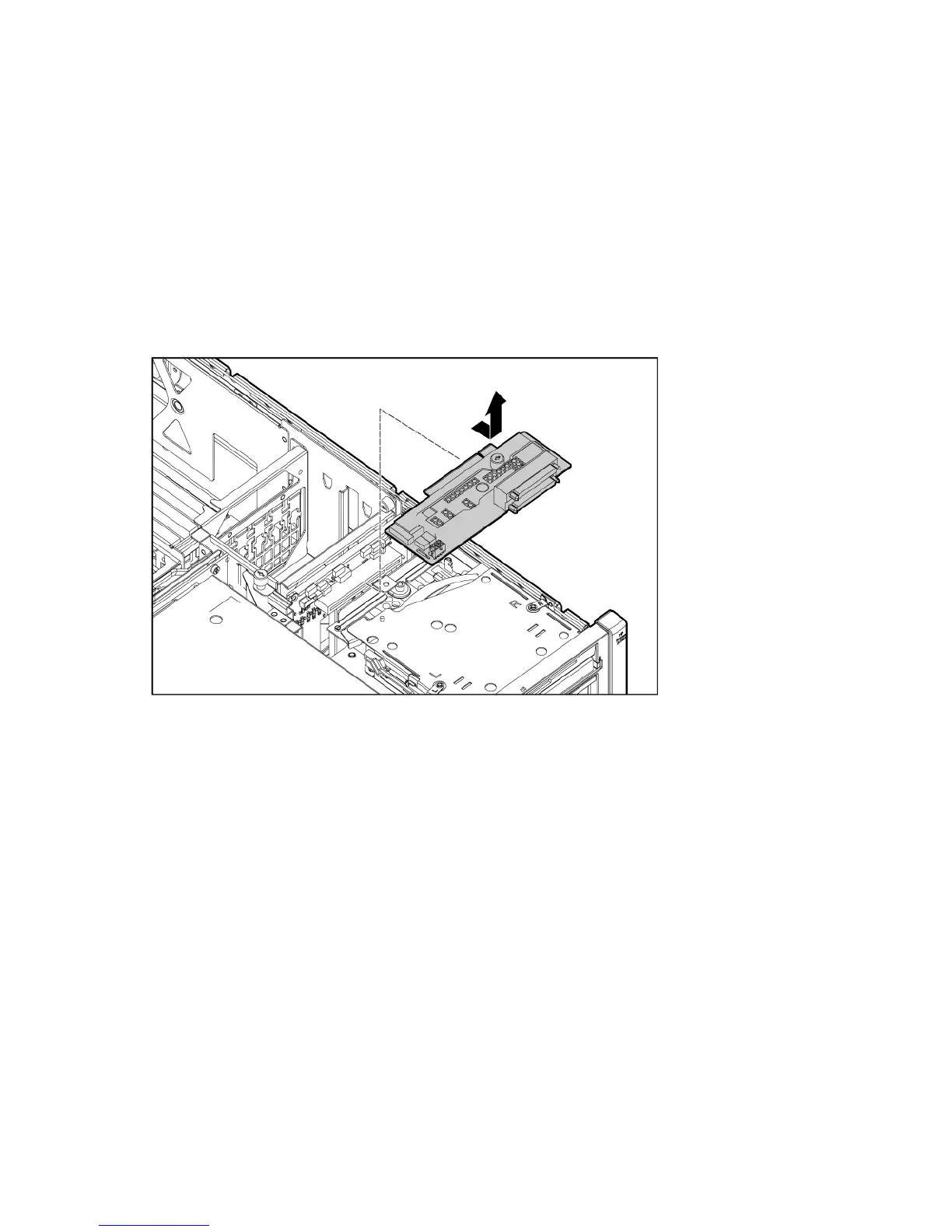

6. Loosen the thumbscrew, and slide the media board toward the front of the server to disconnect it
from the media pass-through board.
7. Lift the media board out of the server.
To replace the component, reverse the removal procedure.
Removing the media pass-through board
1. Power down the server (on page 29).
2. Extend or remove the server from the rack ("Extending the server from the rack" on page 27,
"Remove the server from the rack" on page 29).
3. Remove the access panel ("Removing the access panel" on page 29).
4. Remove all media drives and media drive blanks ("Removing a diskette, DVD, CD-RW drive or
blank" on page 32).
5. Disconnect all cabling from the media board.
6. Remove the media board ("Removing the media board" on page 50).
7. Remove all system fans ("Replacing hot-plug fans" on page 57).
8. Remove all expansion boards ("Removing a non-hot-plug expansion board" on page 41, "Removing
a PCI-X Hot Plug expansion board" on page 42).
9. Remove the expansion slot cover ("Removing the expansion slot cover" on page 40).
10. Remove the PCI-X Hot Plug basket ("Removing the PCI-X Hot Plug basket" on page 41), if installed.
