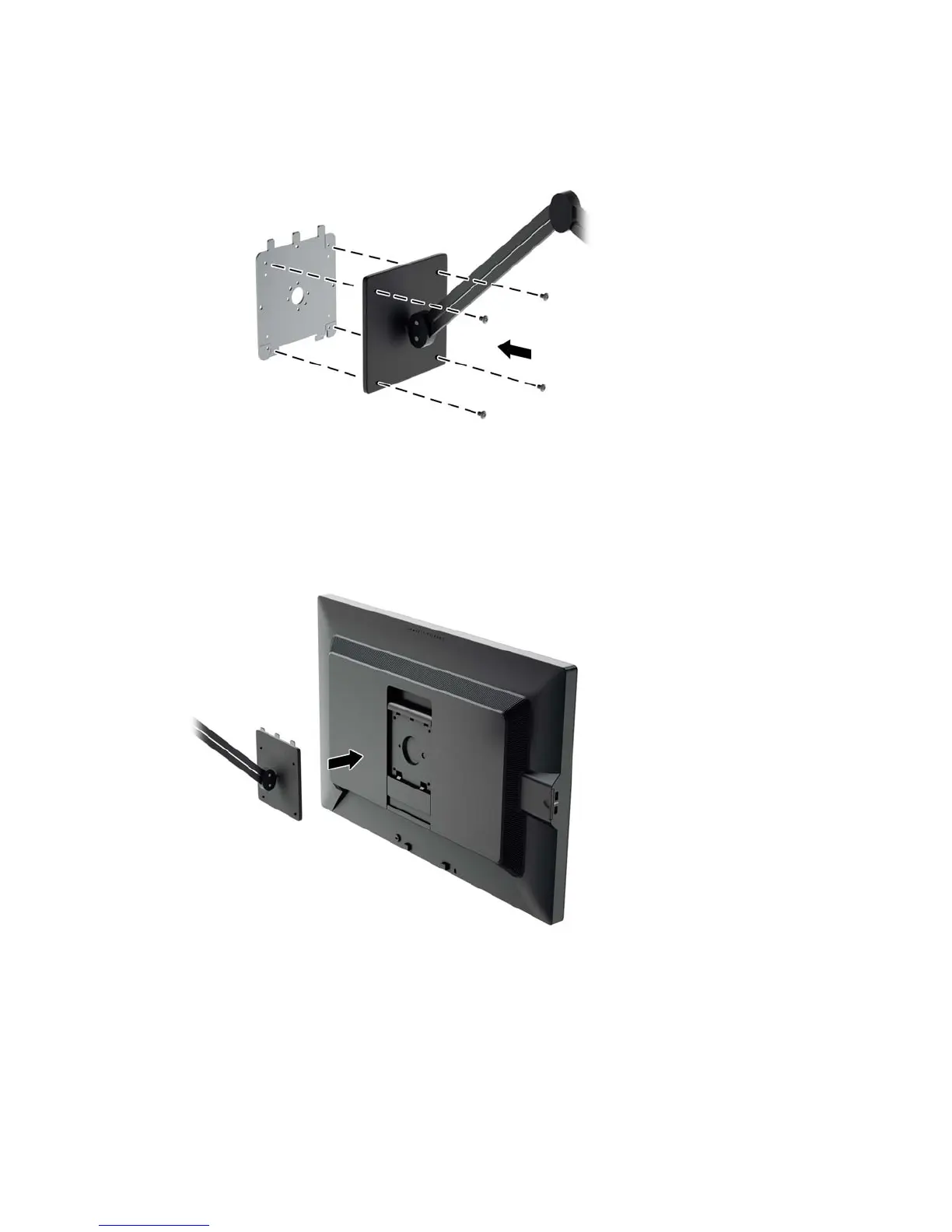

4. Install the mounting plate to the wall or swing arm of your choice using the four screws that were
removed from the VESA holes on the rear of the monitor panel.
5. Place the monitor panel on the mounting bracket you've installed by aligning its recess with the
mounting bracket, then sliding it down over the top of the bracket and pressing it back into place
against the bracket. The release latch on the monitor will pop up when the monitor is safely
locked in place.
22 Chapter 3 Setting Up the Monitor
