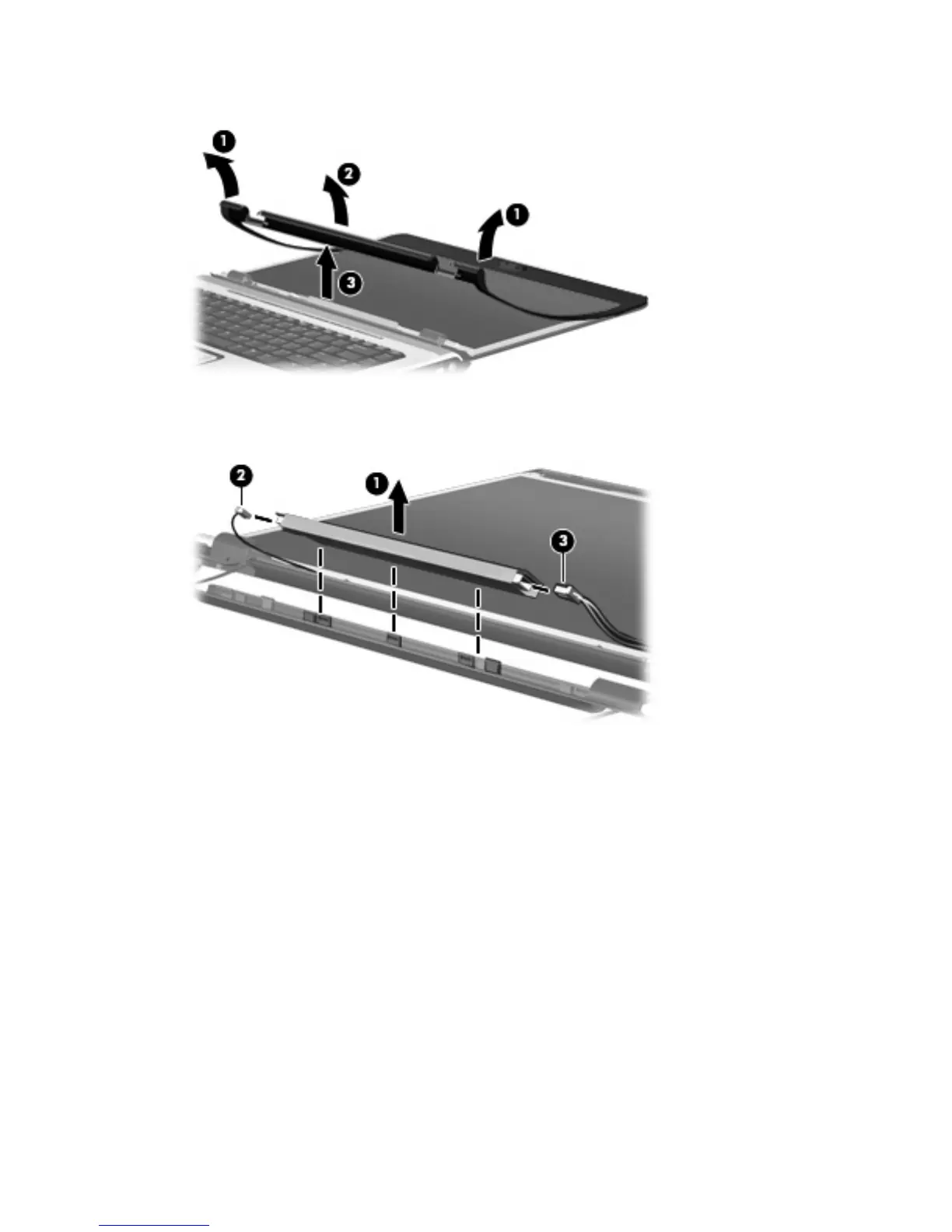

6. Release the display bezel bottom edge (3).
7. Release the display inverter (1) as far as the display panel cable and the backlight cable allow.
8. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
9.
Remove the display inverter.
Reverse this procedure to install the display inverter.
50 Chapter 4 Removal and replacement procedures
