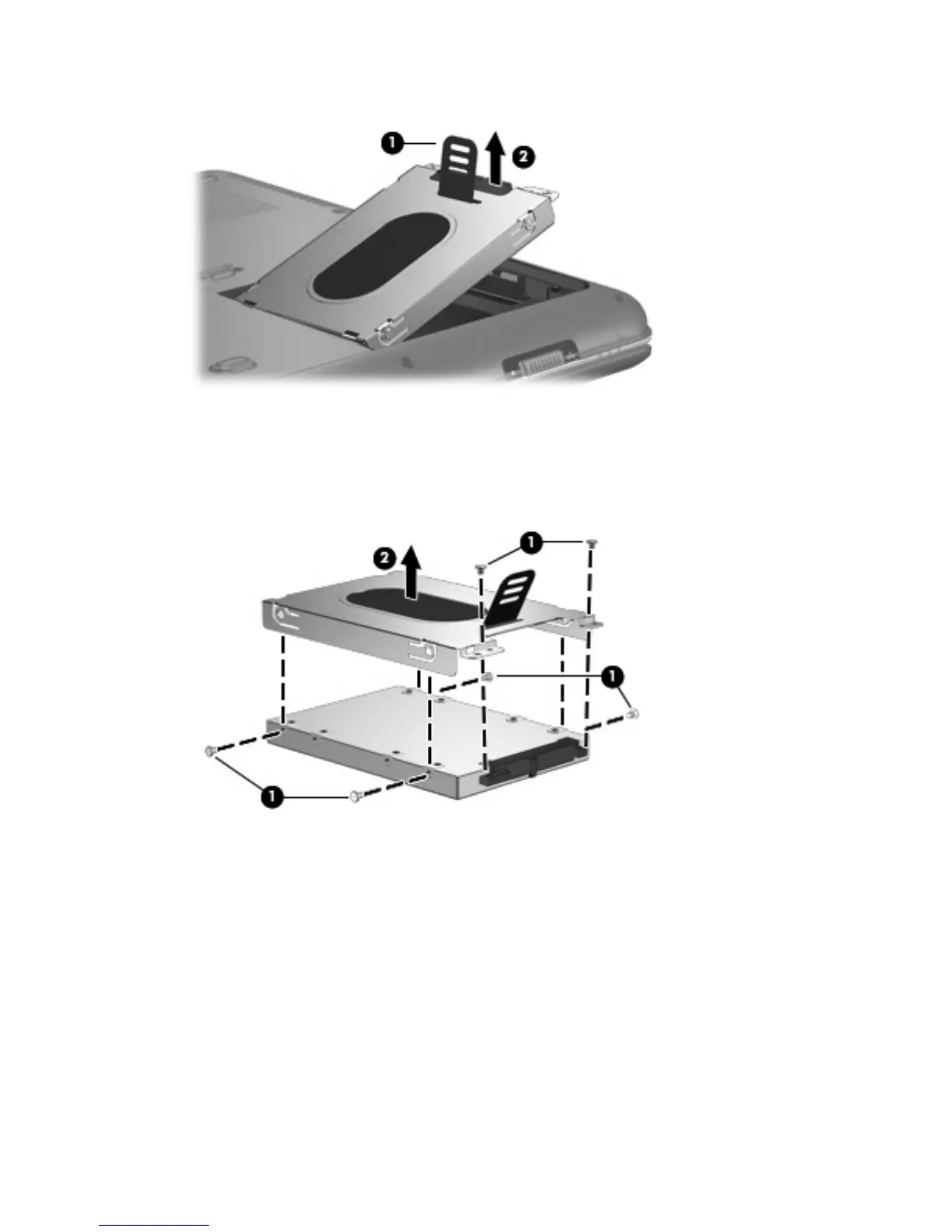

4. Use the Mylar tab (1) to lift the hard drive (2) until it disconnects from the computer.
5.
Remove the hard drive from the hard drive bay.
6.
If it is necessary to remove the hard drive bracket, remove the four Phillips PM3.0×3.0 hard drive
bracket screws (1) that secure the hard drive bracket to the hard drive.
7. Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
52 Chapter 4 Removal and replacement procedures
