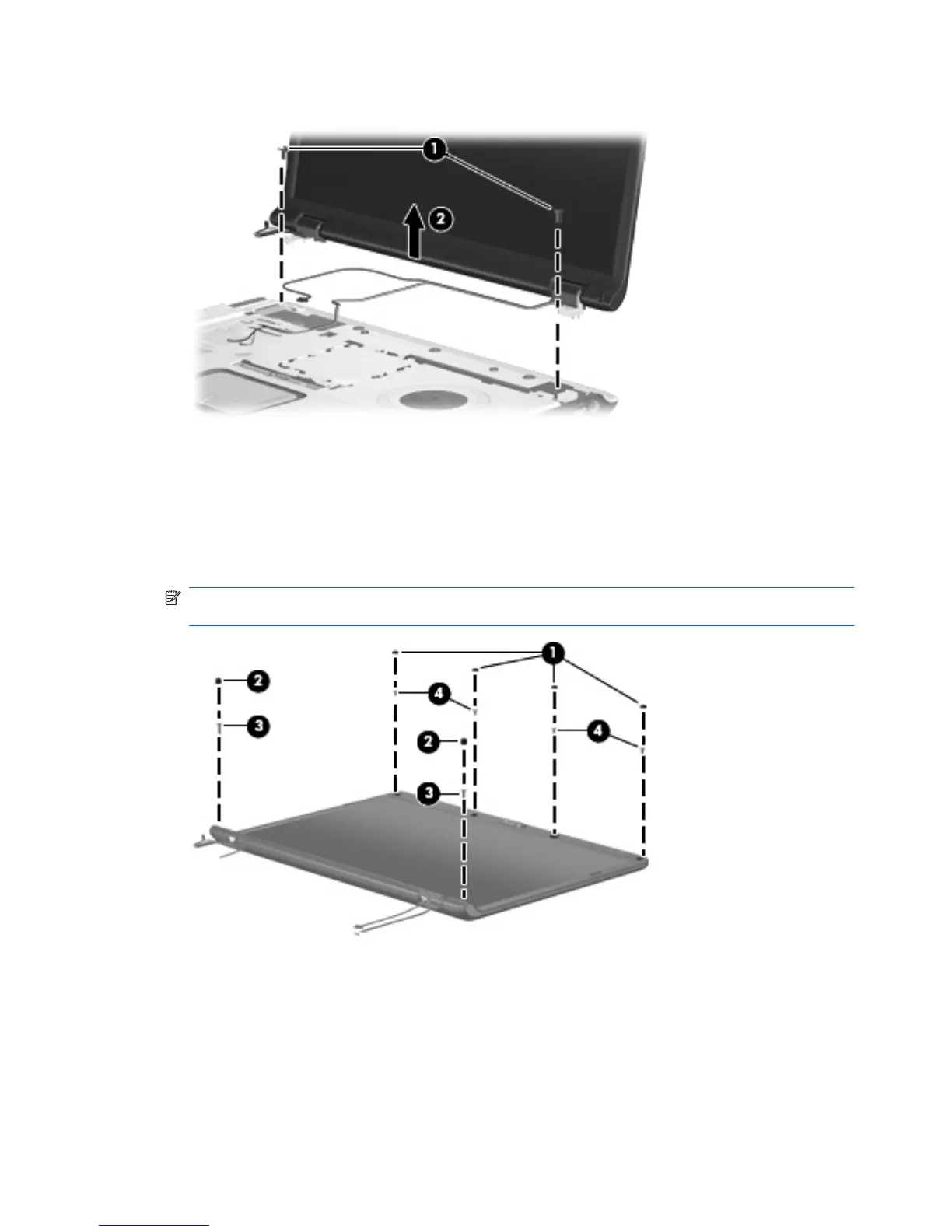

8. Remove the display assembly (2).
9.
If it is necessary to replace the display bezel or any of the display assembly internal components,
remove the following:
(1) Four rubber screw covers on the display bezel top edge
(2) Two rubber screw covers on the display bezel bottom edge
(3) Six Phillips PM2.5×5.0 screws
NOTE: The display rubber screw covers are included in the Display Screw Kit, spare part number
431399-001.
10. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display
bezel until the bezel disengages from the display enclosure.
70 Chapter 4 Removal and replacement procedures
