EL-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01

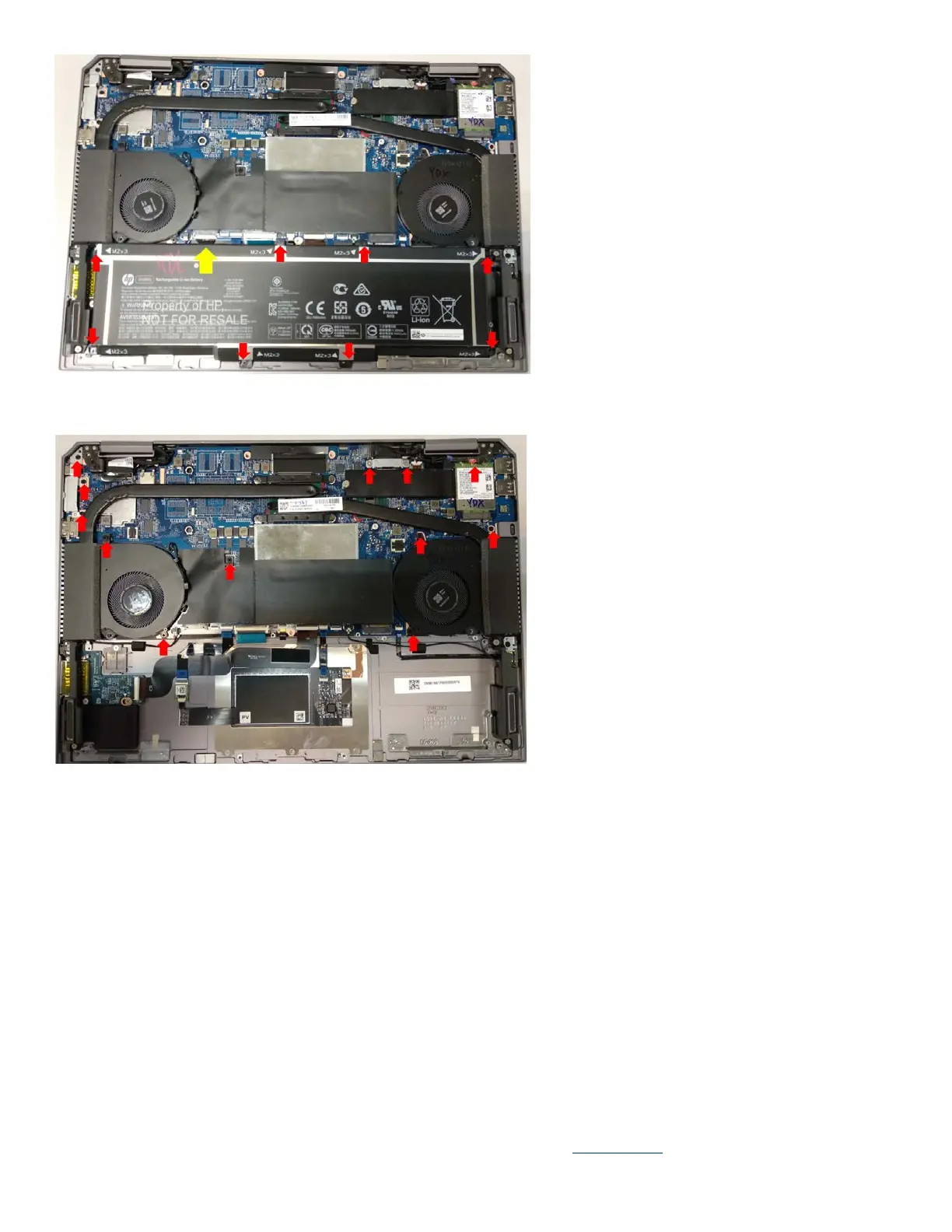

3.23 Use tool #3 Release main board screw 12PCS
3.24 Release below cable Speaker cable NFC cable,KB cable,TP cable ,HDD cable ,Power button cable ,CCD
cable,LCD cable ,WWan antenna cable,Wlan cable .final step release main board
