Perform the following steps:

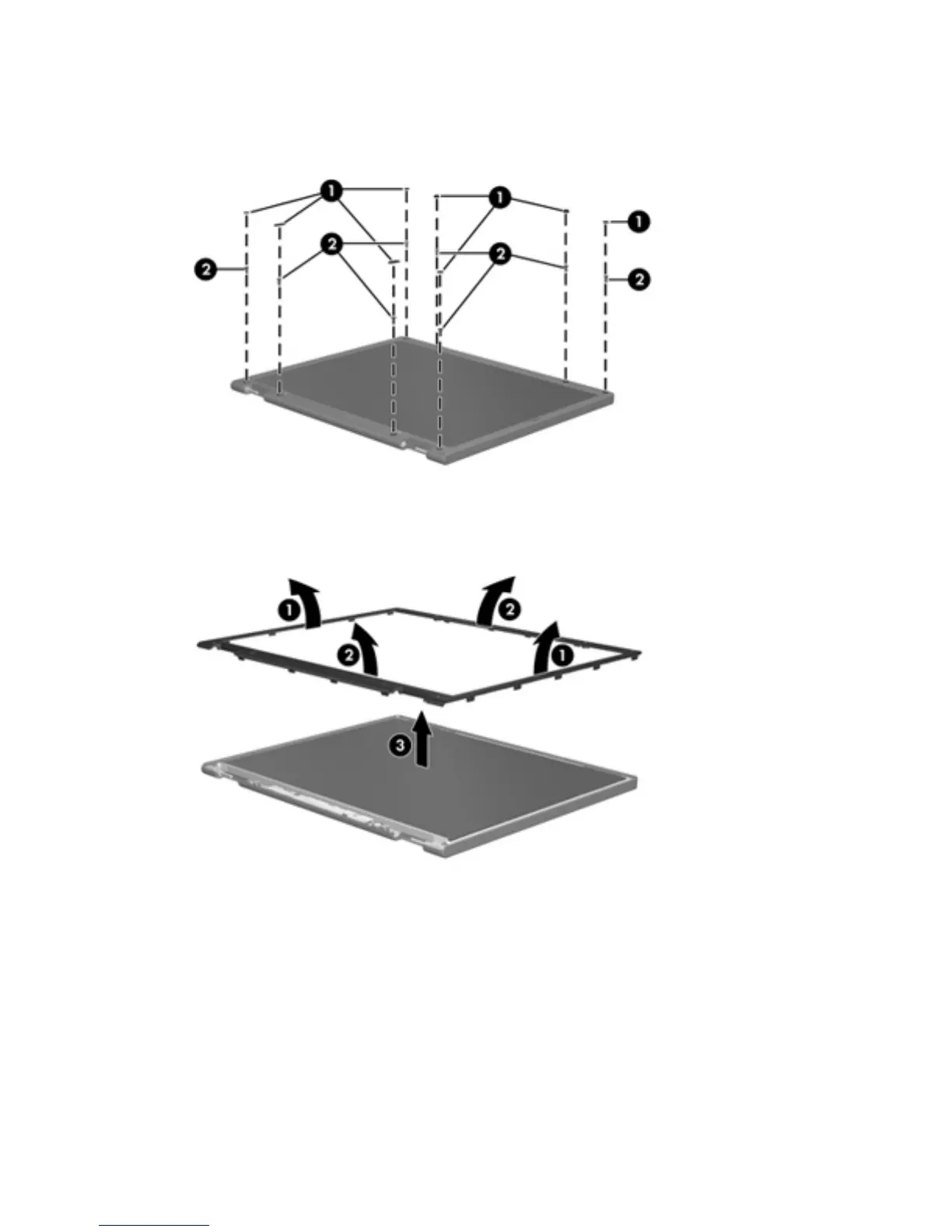

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display
assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of
the display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel 3.
152 Chapter 10 Recycling ENWW
