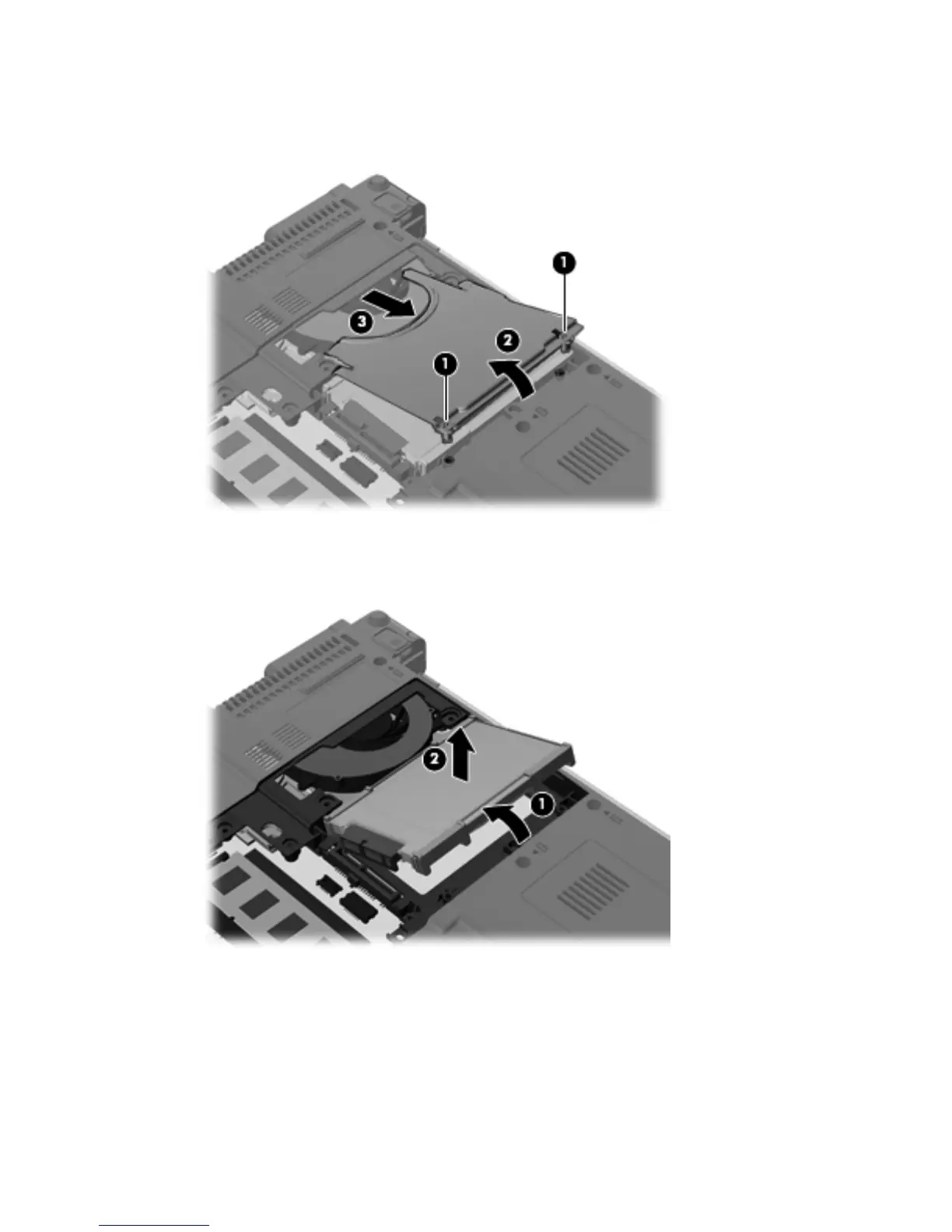

3. Lift the right edge of the hard drive shield (2), swing it up and to the left, and then remove the
cover (3) by sliding it up and to the right at an angle. The hard drive shield is included in the hard
drive spare part kit.
4. Lift the right side of the low-voltage hard drive (1) to disconnect it from the system board.
5. Remove the low-voltage hard drive (2).
ENWW Component replacement procedures 55
