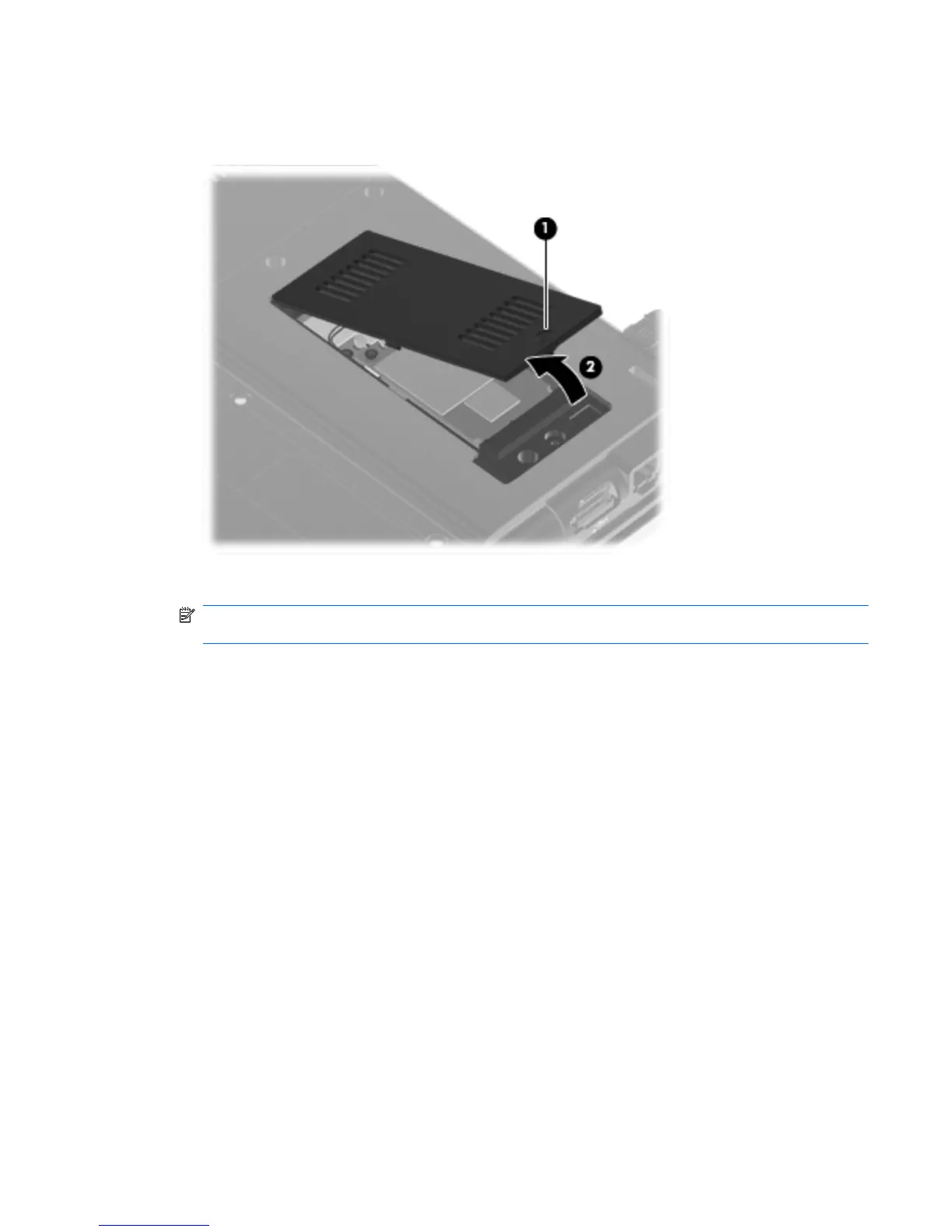

2. Lift the right edge of the wireless module compartment cover (2), swing it up and to the left, and
remove the cover. The wireless module compartment cover is included in the Plastics Kit, spare
part number 598796-001.
3. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal.
The white WLAN antenna cable is connected to the WLAN module “Aux” terminal.
4. Remove the two Phillips PM2.5×6.0 screws (2) that secure the WLAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
ENWW Component replacement procedures 59
