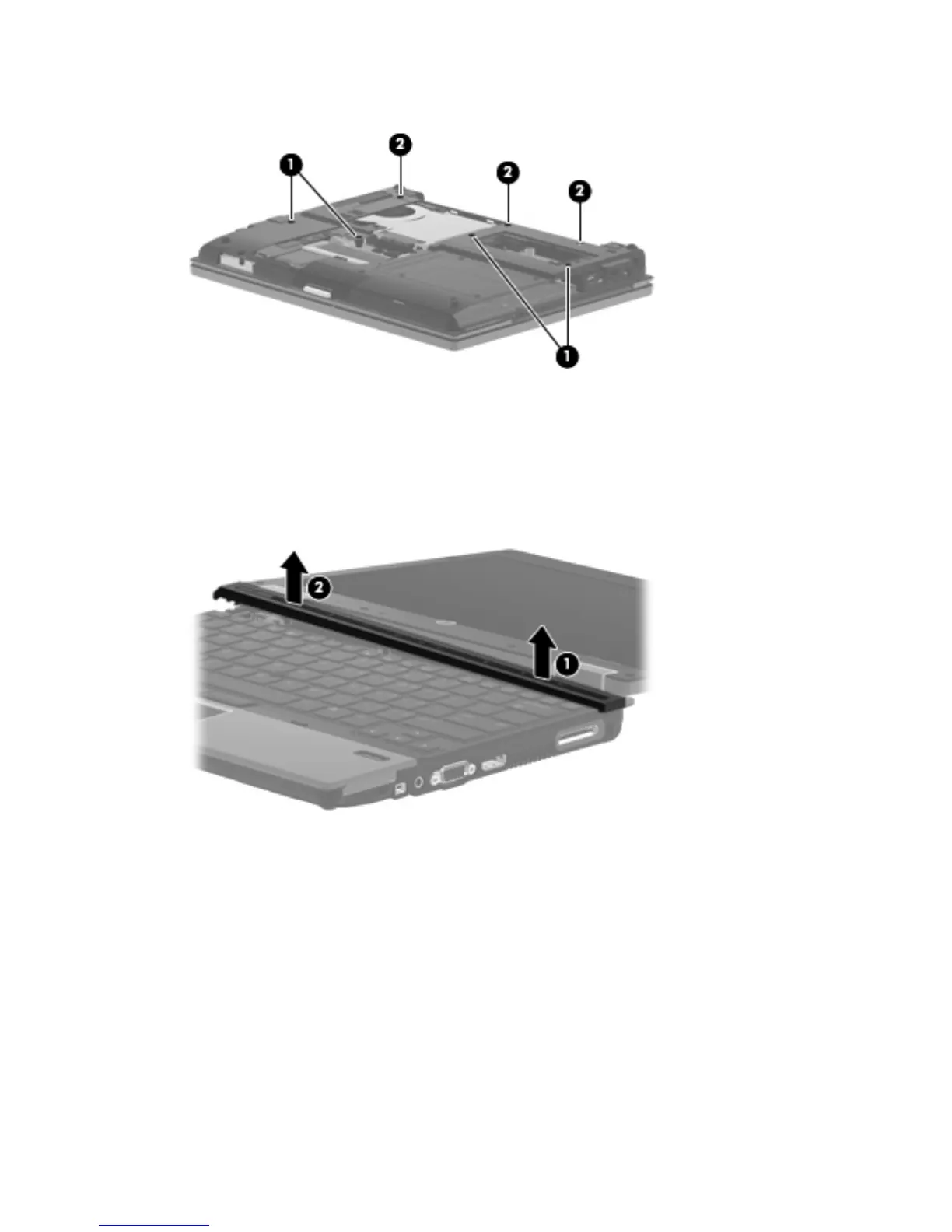

2. Loosen the four captive screws (2) that secure the keyboard to the computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the display as far as possible.
5. Lift the right side of the switch cover (1) to detach it from the computer.
6. Release the switch cover (2) as far as the power button board and capacitive board cables
allow.
7. Lift the rear edge of the keyboard (1) until it rests at an angle.
8. Slide the keyboard (2) back until the tabs on the front edge of the keyboard disengage from the
slots in the top cover.
70 Chapter 4 Removal and replacement procedures ENWW
