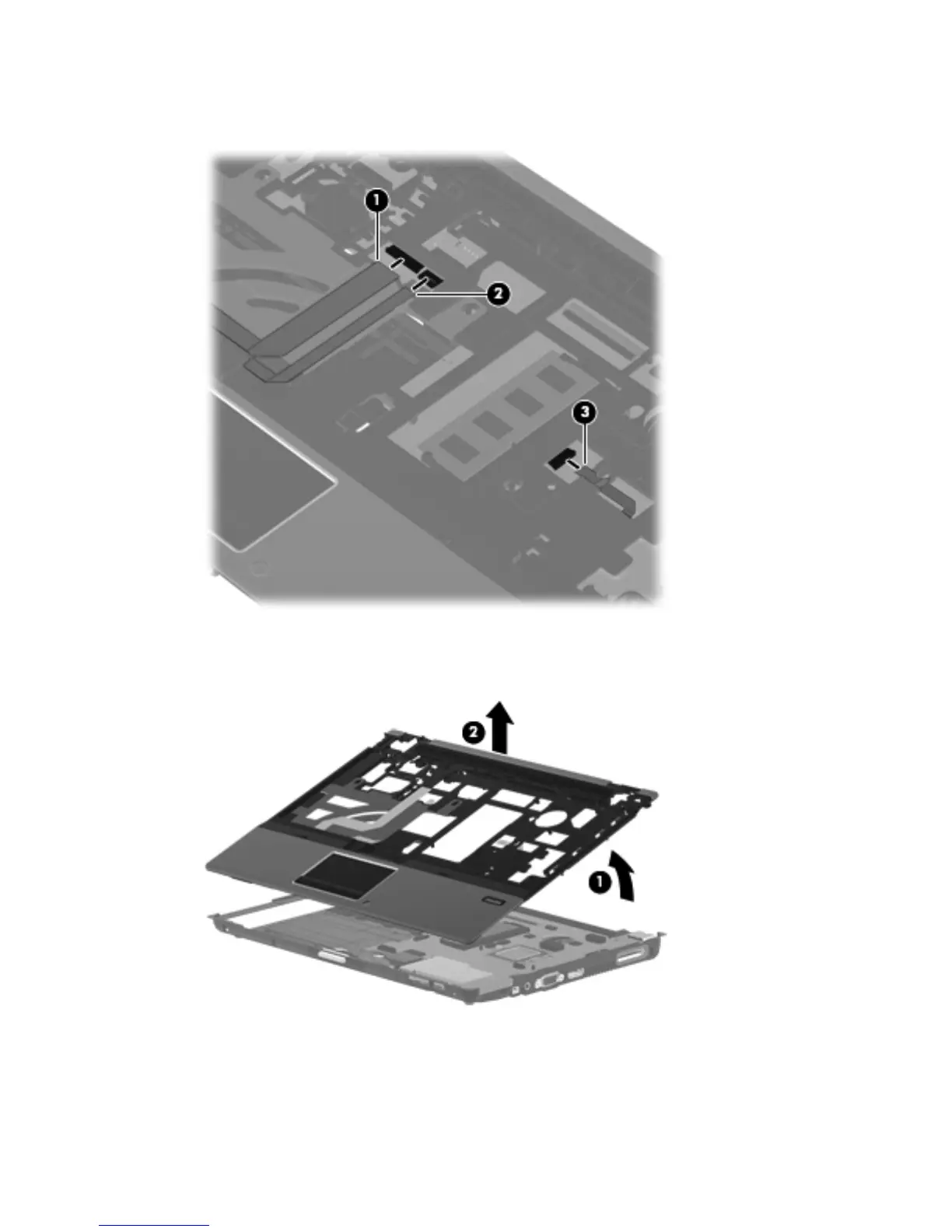

8. Release the ZIF connector to which the fingerprint reader board cable is attached, and then
disconnect the fingerprint reader board cable (3) from the system board.
9. Lift the rear edge of the top cover (1), and then swing it up and forward until it rests at an angle.
10. Lift the front edge of the top cover (2) until it disengages from the base enclosure.
11. Remove the top cover.
Reverse this procedure to install the top cover.
