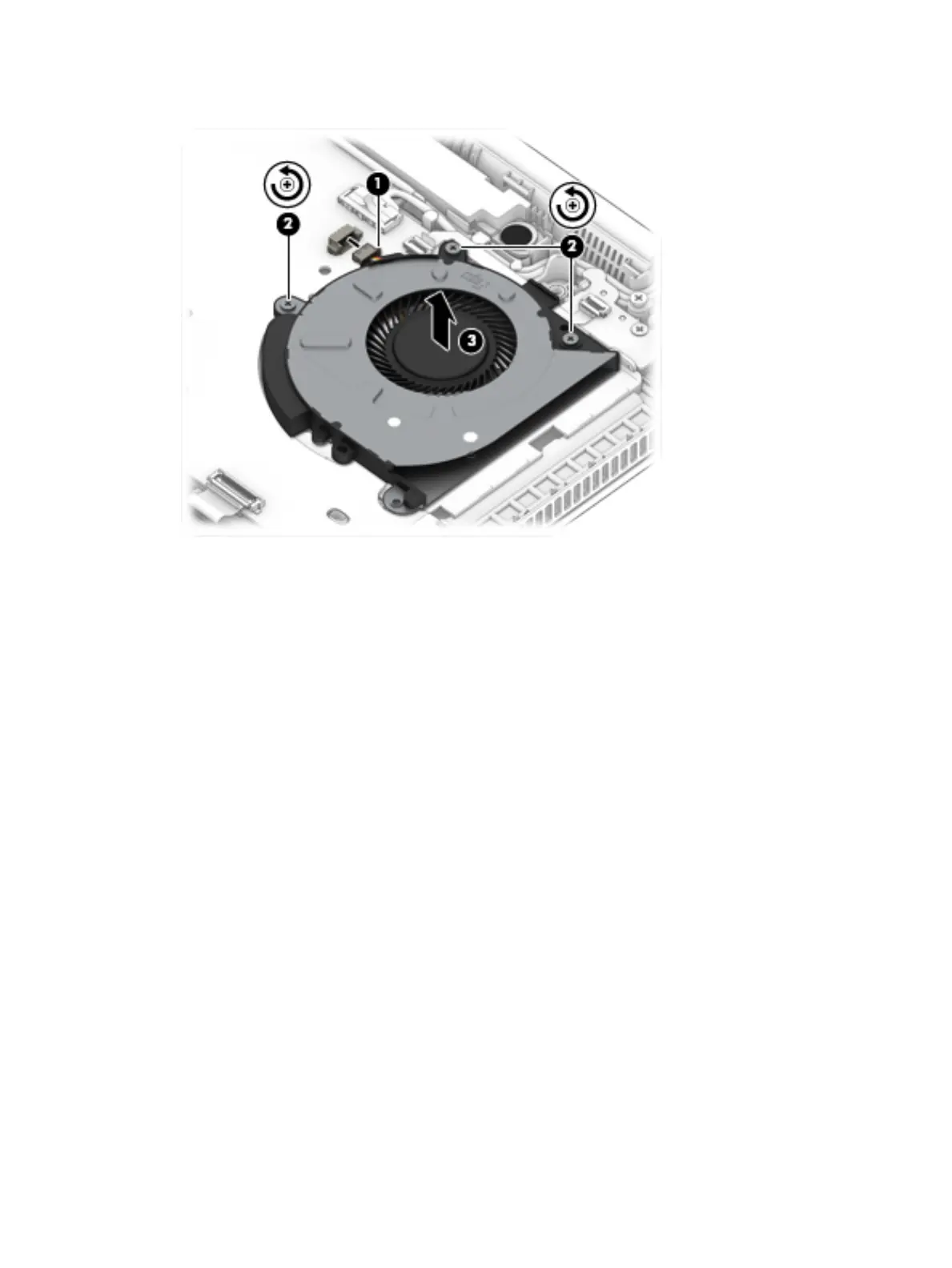

6. Remove the fan from the computer (3).

Reverse this procedure to install the fan.

66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
