b. IR camera models

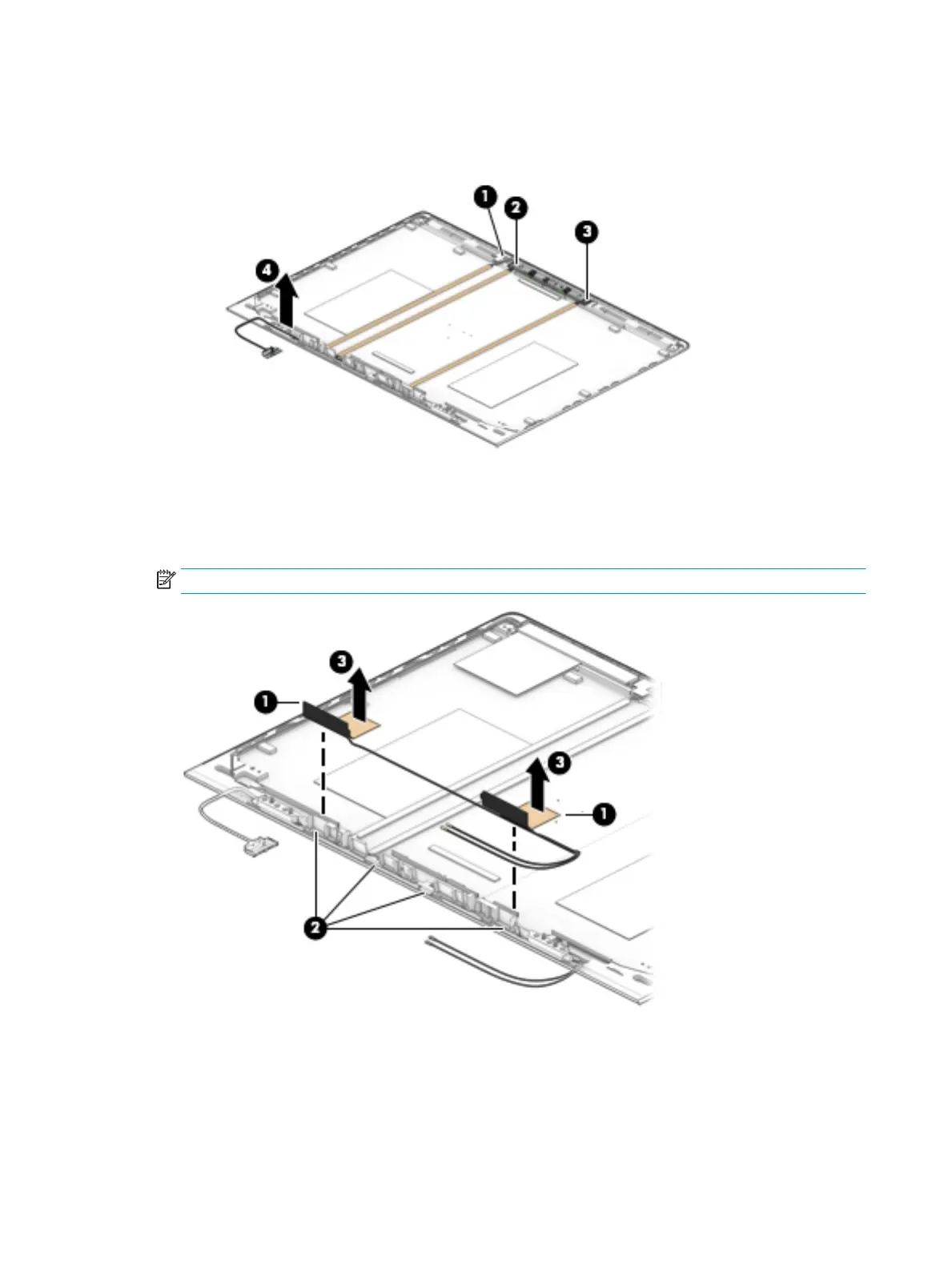

Disconnect the cable from the ambient light sensor board (1), from the left (2) and right (3) sides
of the IR camera, and then remove the cable from the display enclosure (4).
The camera cable is available in the Cable Kit using spare part number L13678-001.
18. If it is necessary to replace the WLAN antenna cables, peel the antennas from the top of the display
enclosure (1), remove the antenna cables from the routing path on the bottom of the display enclosure
(2), and then remove the antenna cables (3).
NOTE: The WLAN antennas are available using spare part number L19428-001.
80 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
