HP EliteBook 8530w User Manual

13. Touchpad with scroll zone 27. Optional 2 MP Webcam with LED
14. Touchpad buttons, three 28. HP NightLight and on/off button

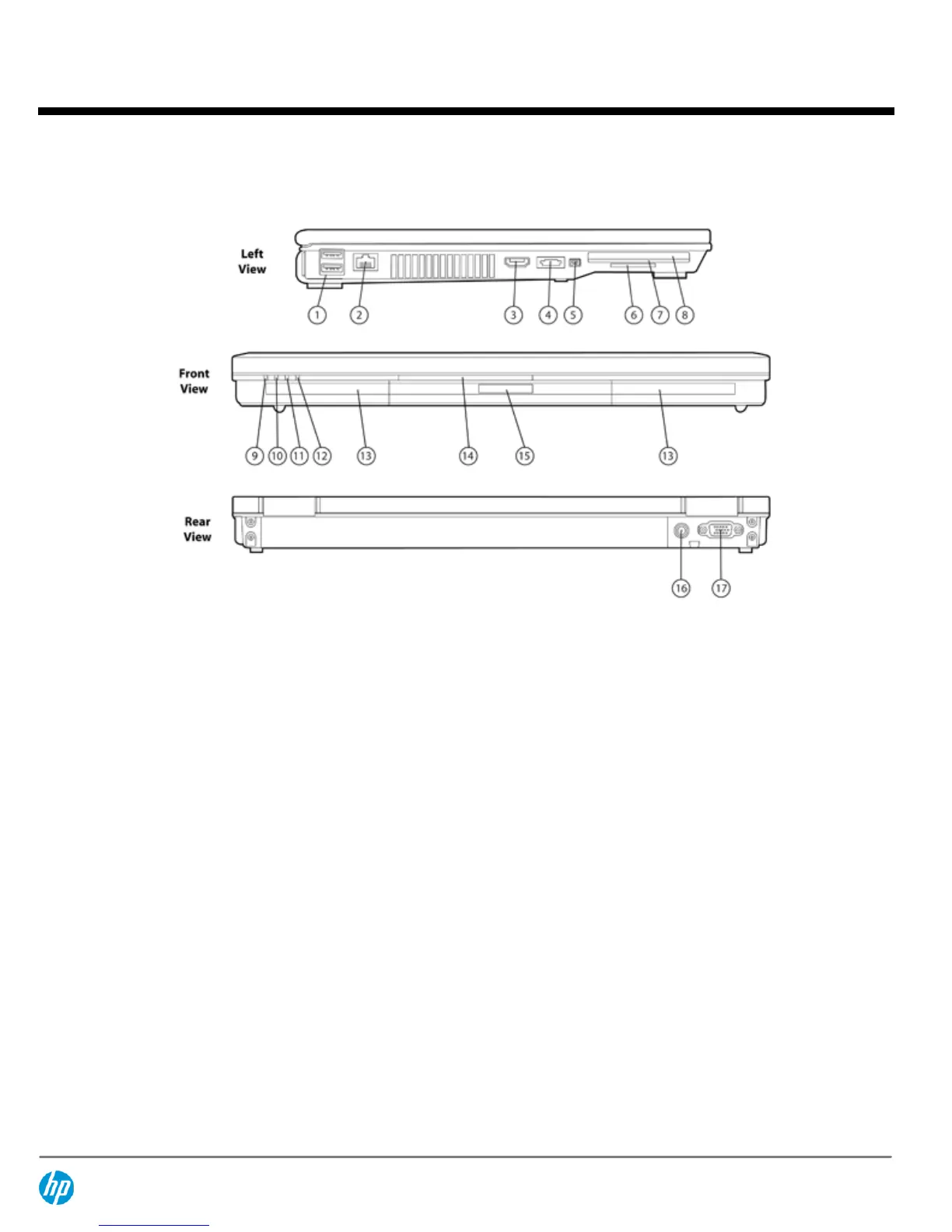

1. (2) USB 2.0 ports 9. Wireless on/off LED
2. RJ-45/Ethernet port 10. Power/standby LED
3. HDMI port 11. Battery charging LED
4. eSATA port 12. Hard drive / optical drive activity / HP 3D DriveGuard LED
5. 1394a port 13. Integrated stereo speakers
6. Media Card Reader 14. Business Card slot
7. Integrated Smart Card Reader 15. Display release latch
8. ExpressCard/54 slot 16. Power connector
17. VGA/external monitor connector
QuickSpecs
HP EliteBook 8530w Mobile Workstation
Overview
DA - 13093 North America — Version 12 — September 18, 2009 Page 2

HP EliteBook 8530w Specifications

Processor

Processor 1	Intel Core 2 Extreme Processor QX9300 (2.53 GHz, 12 MB L2 cache, 1066 MHz FSB)
Processor 2	Intel Core 2 Extreme Processor X9100 (3.06 GHz, 6 MB L2 cache, 1066 MHz FSB)
Processor 3	Intel Core 2 Quad Processor Q9100 (2.26 GHz, 12 MB L2 cache, 1066 MHz FSB)
Processor 4	Intel Core 2 Duo Processor T9600 (2.80 GHz, 6 MB L2 cache, 1066 MHz FSB)
Processor 5	Intel Core 2 Duo Processor T9400 (2.53 GHz, 6 MB L2 cache, 1066 MHz FSB)
Processor 6	Intel Core 2 Duo Processor P8600 (2.40 GHz, 3 MB L2 cache, 1066 MHz FSB)
Processor 7	Intel Core 2 Duo Processor P8400 (2.26 GHz, 3 MB L2 cache, 1066 MHz FSB)

Memory

Memory Type	DDR2 SDRAM, 800MHz
Memory Capacity per Slot	1024/2048/4096 MB SODIMMs
Maximum Memory Capacity	up to 8192MB total

Storage

Internal Storage 1	120/160/250 GB 5400rpm SATA HDD
Internal Storage 2	160/250/320 GB 7200rpm SATA HDD
Solid State Drive	80 GB

Display

Display 1	15.4-inch diagonal WXGA Anti-Glare (1280 x 800)
Display 2	15.4-inch diagonal WXGA+ Anti-Glare (1680 x 1050)
Display 3	15.4-inch diagonal WUXGA+ Anti-Glare (1920 x 1200)

Power

Battery 1	8-cell (73 WHr) Lithium-Ion battery
Optional Battery 1	HP (52 WHr) Extended Life Battery
Optional Battery 2	HP (95 WHr) Ultra-Capacity Battery
AC Adapter	120W HP Smart AC Adapter

Ports & Interfaces

USB Ports	4 USB 2.0 ports
HDMI Port	Yes
VGA Port	Yes
eSATA Port	Yes
Audio Ports	Stereo microphone in, stereo headphone/line out

Weight and Dimensions

Height	1.1 in (at front) / 28.2 mm (at front)
Width	14.0 in / 355.0 mm
Depth	10.4 in / 263.5 mm
Weight	Starting at 6.3 lbs / 2.86 kg
