HP EliteBook 8570w

1. Security lock slot 9. ExpressCard/54 slot
2. RJ-45/Ethernet port 10. Stereo headphone/line out
3. Vents 11 Stereo microphone/line in
4. DisplayPort 12. (2) USB 3.0 ports
5. eSATA/USB 2.0 combo port 13. VGA/external monitor connector
6. USB 2.0 port 14. Smart Card Reader
7. USB 2.0 charging port 15. Upgrade Bay (optical drive, additional hard drive, or weight
saver)
8. 1394a port

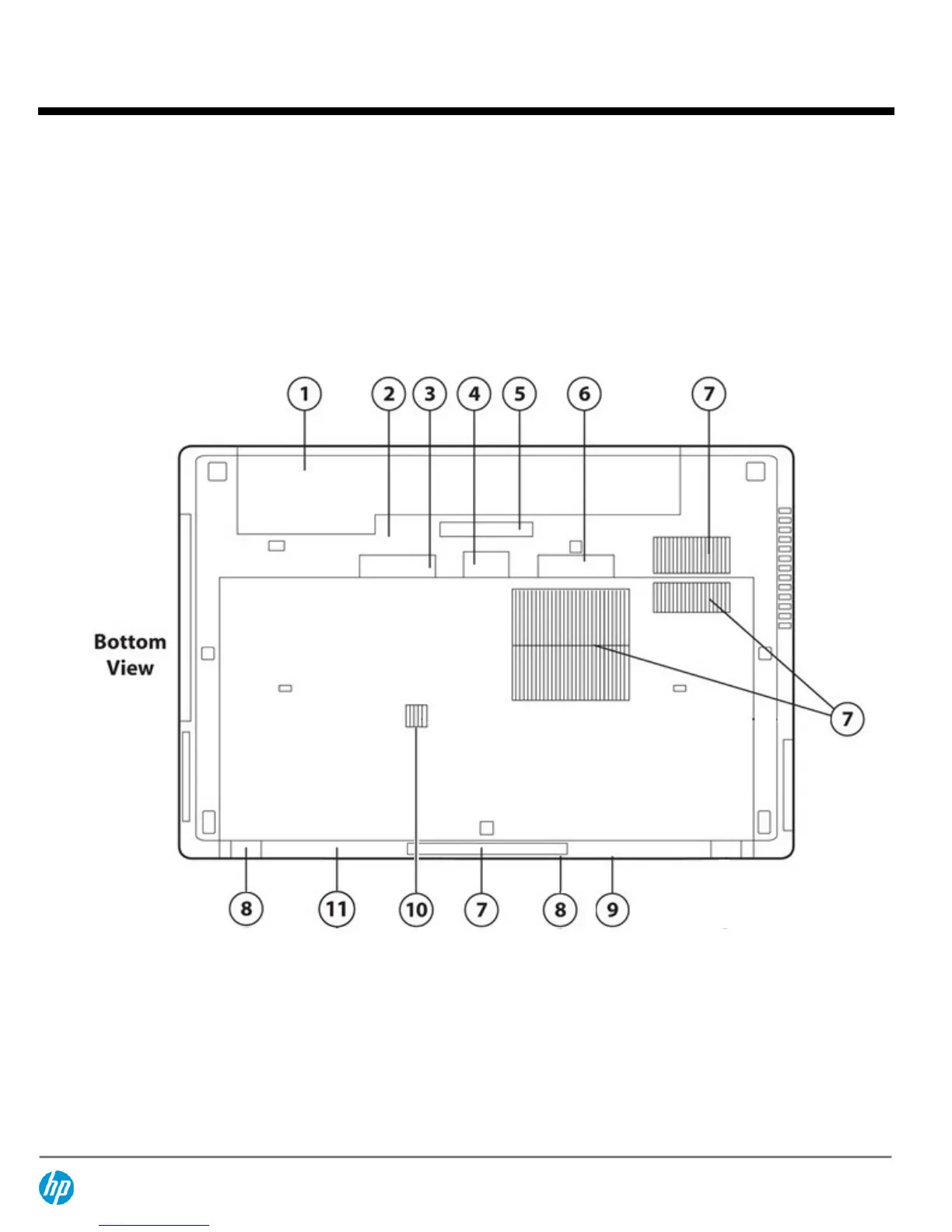

1. Battery bay 7. Vents
2. SIM slot* for WWAN (select models) 8. Stereo Speakers
3. Battery release latch 9. Bluetooth module compartment
4. Secondary battery connector 10. Spill-resistant keyboard drain hole
5. Docking connector 11. Hard drive, memory, and wireless compartments
under bottom cover
6. Bottom cover release latch
* SIM slot is accessed through battery bay.
QuickSpecs
HP EliteBook 8570w Mobile Workstation
Overview
DA - 14315 North America — Version 15 — May 8, 2013 Page 3
