HP EliteDesk 705 G1 - Page 5

E
L-MF877-00 Page 5
Template Revision B
PSG instructions for this template are available at EL-MF877-01

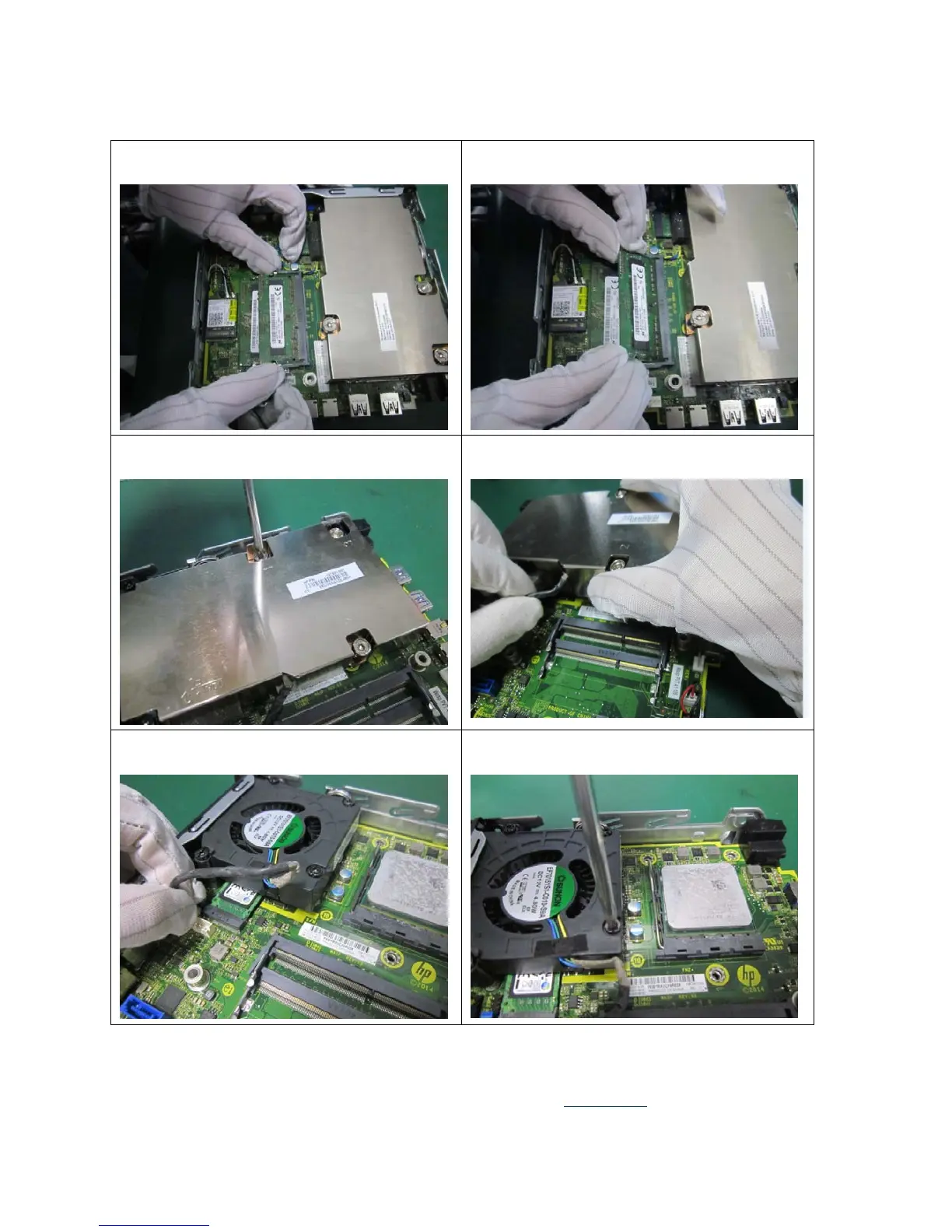

Figure13 Loose the fixed feature of memory. Figure14 Remove the Memory from the board.
Figure15 Loose the screw of CPU HeatSink. Figure16 Remove the CPU HeatSink.
Figure17 Disconnect the system fan cable. Figure18 Loose the screws of system fan cable.
