HP EliteDesk 705 G1 - Page 4

E
L-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

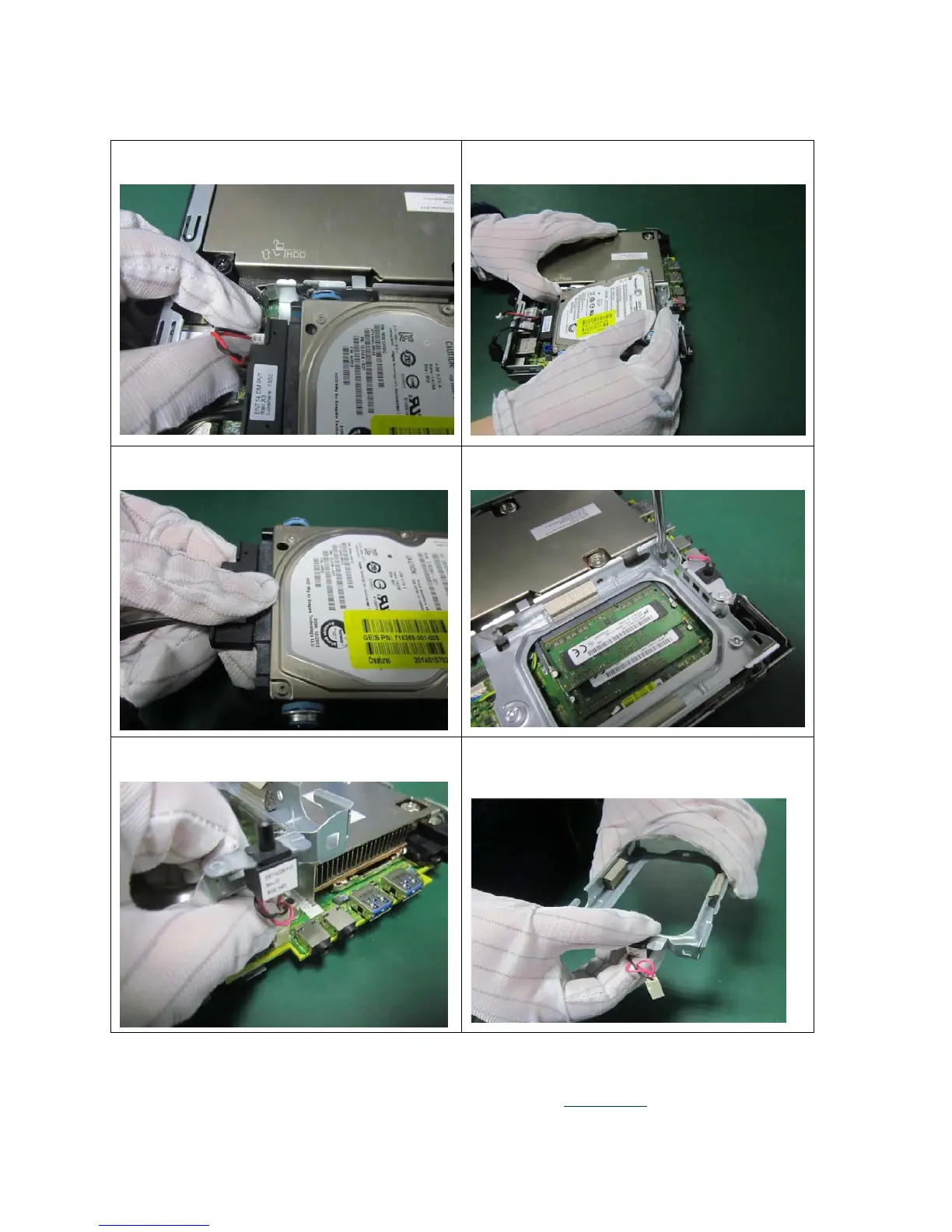

Figure7 Disconnect HDD Power cable. Figure8 Loose the HDD latch and remove HDD.
Figure9 Disconnect the cable from the HDD. Figure10 Loose the screw from HDD cage.
Figure11 Disconnect the hood sense cable. Figure12 Take out the HDD cage and remove hood
sense cable.
