HP EliteDesk 705 G2 Desktop Mini User Manual

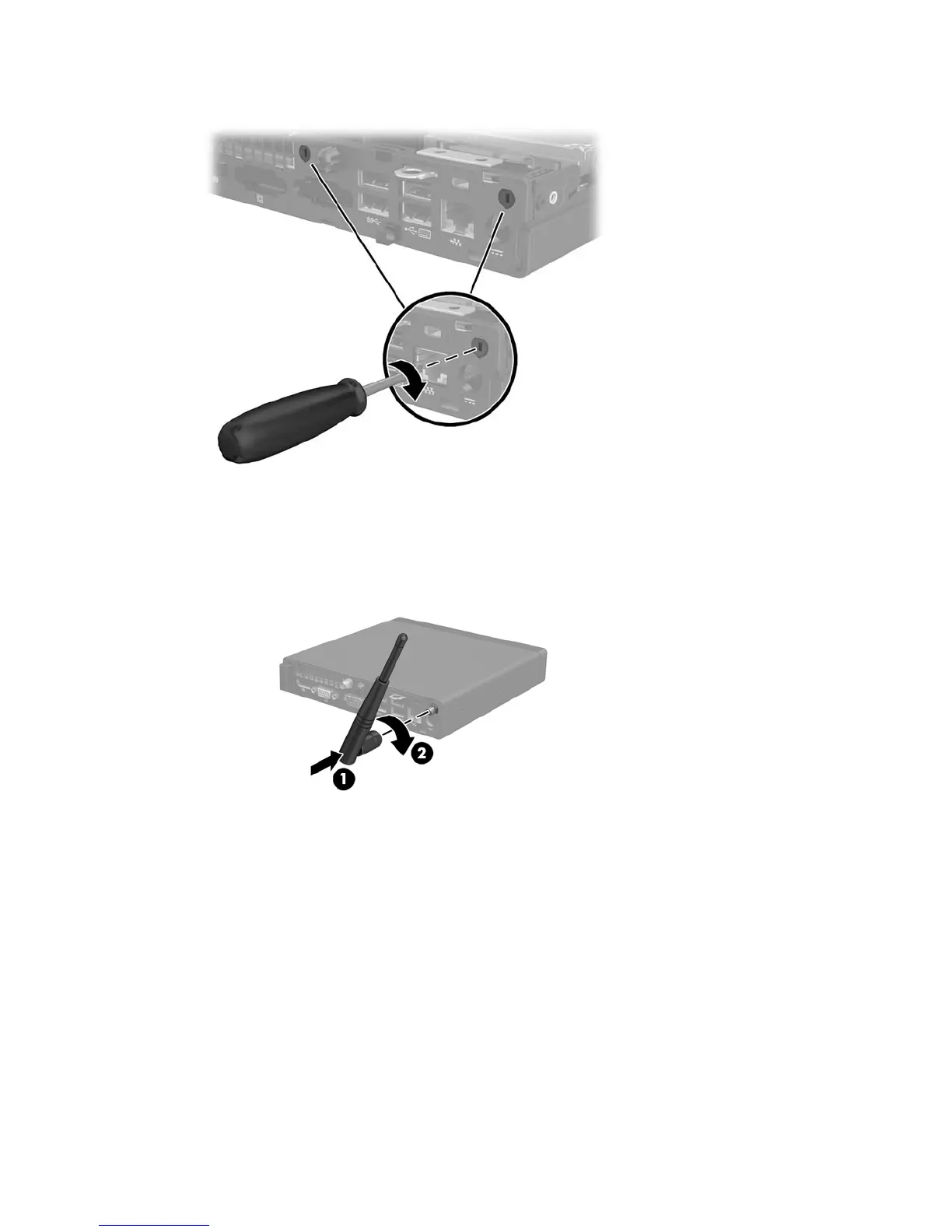

9. Insert a Phillips screwdriver in each knock-out feature and rotate to remove the blank.
10. Feed the external antenna cable through each hole and screw the antenna into position.
11. Connect the external antenna cables to the WLAN module.
Reverse the removal procedure to install the WLAN antennas and transceivers.
External antenna 33

HP EliteDesk 705 G2 Desktop Mini Specifications

General

Brand	HP
Model	EliteDesk 705 G2 Desktop Mini
Category	Desktop
Language	English
