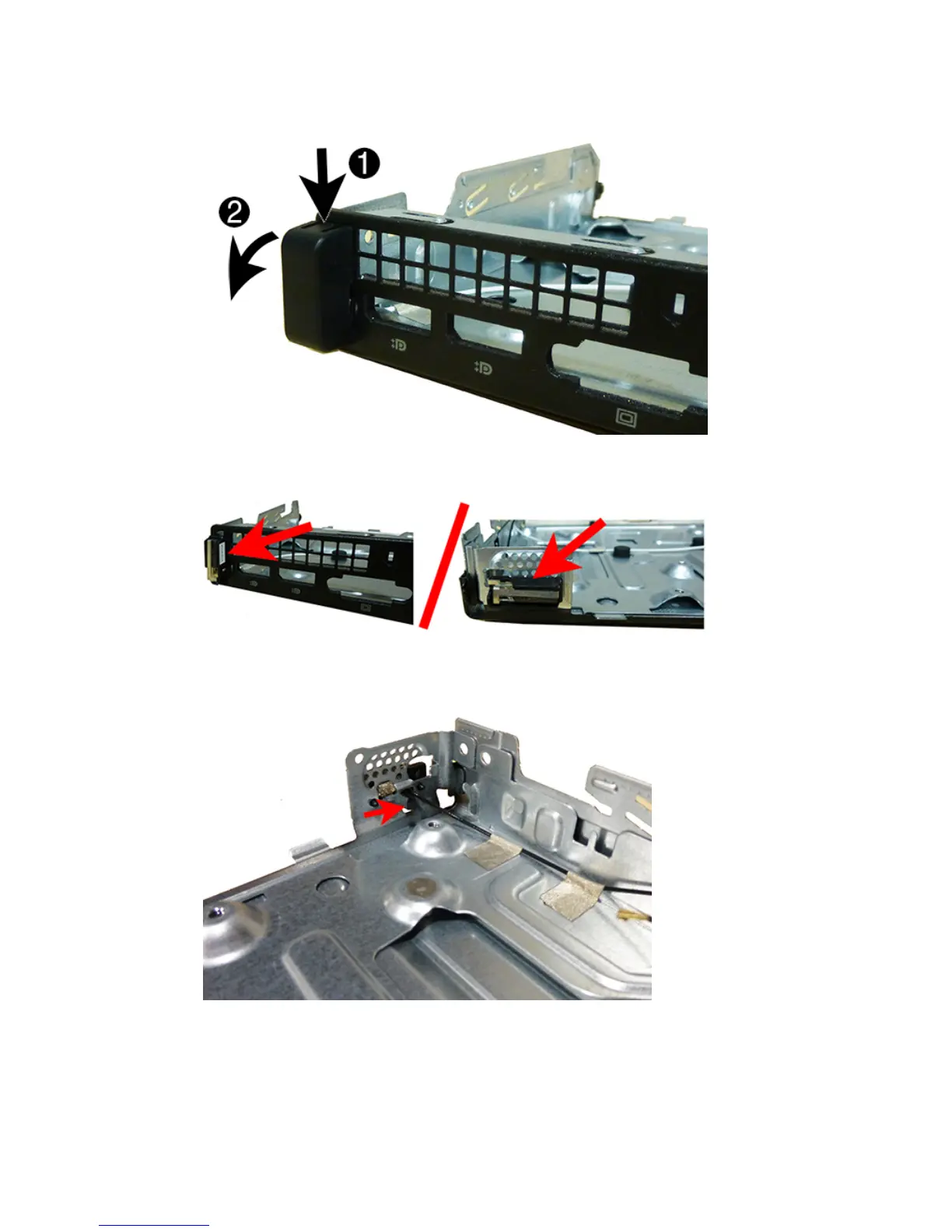

14. On the rear of the computer, remove the antenna cover by pressing on the tab on the top of the cover
(1), and then rotating the cover o the computer (2).
15. Antenna transceivers are connected to the front and back of the computer as shown in the following
image.
16. Remove the front transceiver from the inside of the computer by pressing the tab to disengage the
transceiver and removing the transceiver (arrow in following image points to the tabs on the inside of
the computer).
Internal WLAN antenna cable removal/installation 55
