HP EliteDesk 705 G2 SFF - Page 6

EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

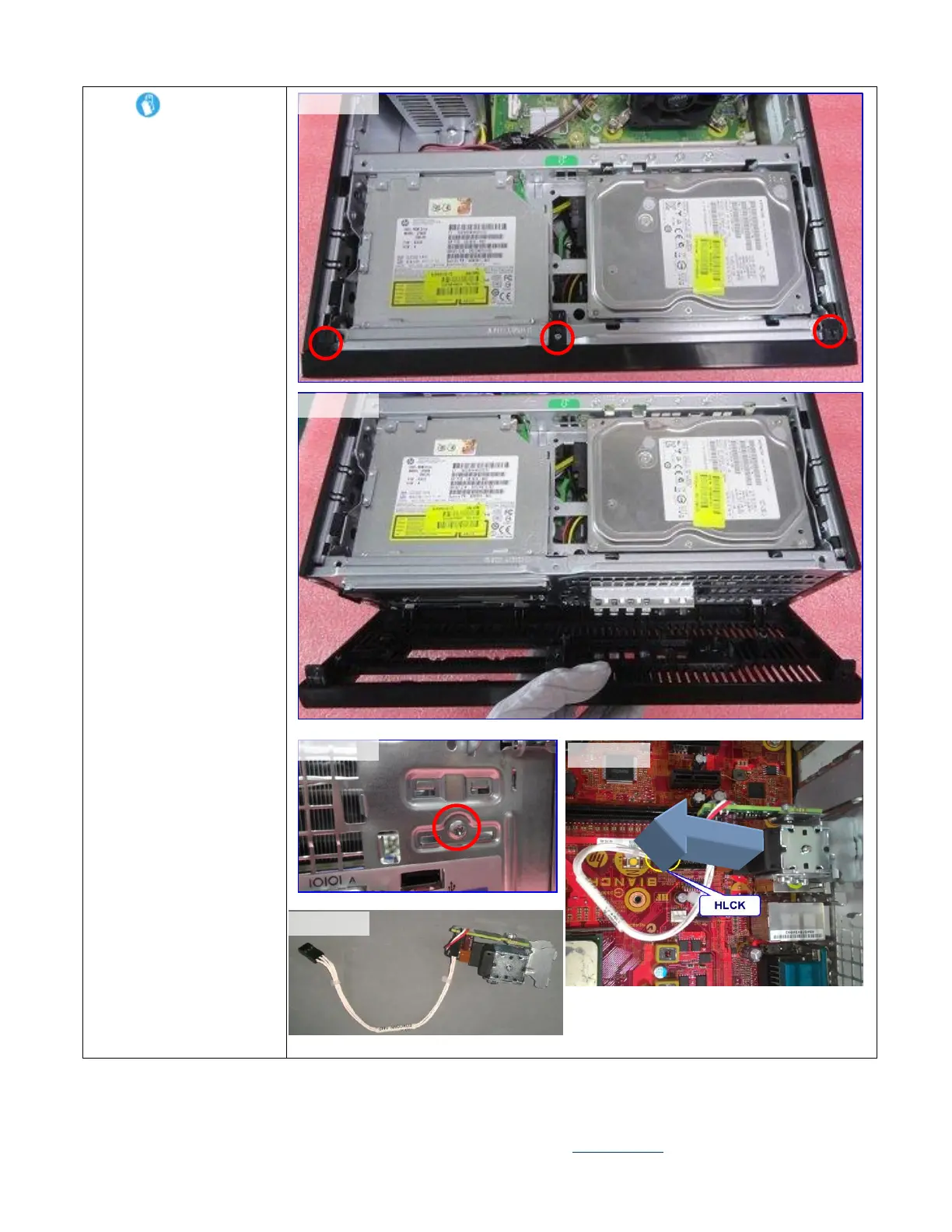

4. Remove front bezel and hood lock
1
Lift up 3 latches
then remove front
bezel
(See Photo7,8)
2
Release tamper
proof screw then
release the cable
from M/B
(6-32 x .187”
Security Head)
(See Photo9,10,11)
