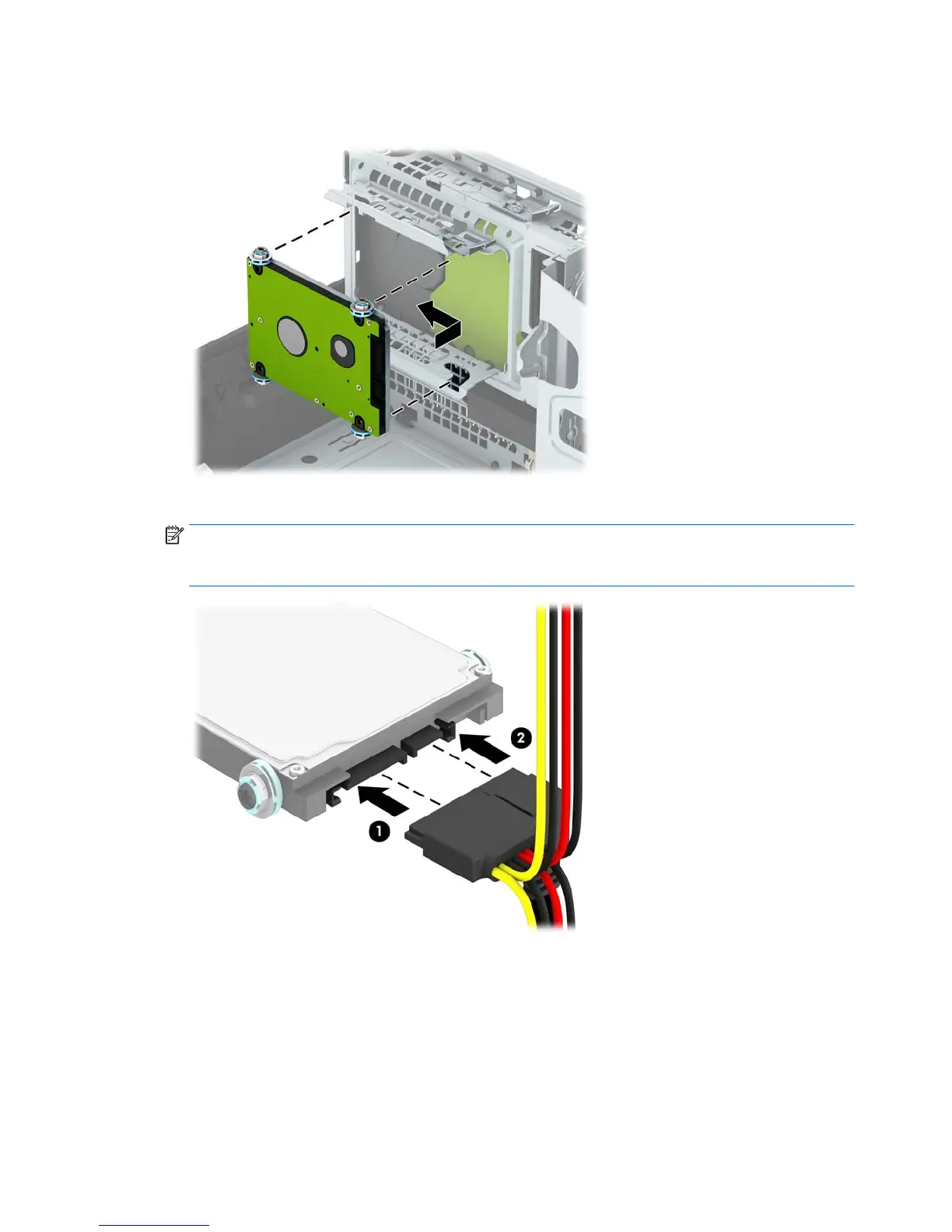

9. Align the mounting screws on the drive with the J-slots on the sides of the drive bay. Press the drive up
into the drive bay then slide it forward until it locks in place.
10. Connect the power cable (1) and data cable (2) to the back of the hard drive.
NOTE: If the 2.5-inch hard drive is the primary drive, connect the other end of the data cable to the
dark blue SATA connector on the system board labeled SATA0 . If it is a secondary hard drive, connect
the other end of the data cable to one of the light blue SATA connectors on the system board.
36 Chapter 2 Hardware upgrades
