EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

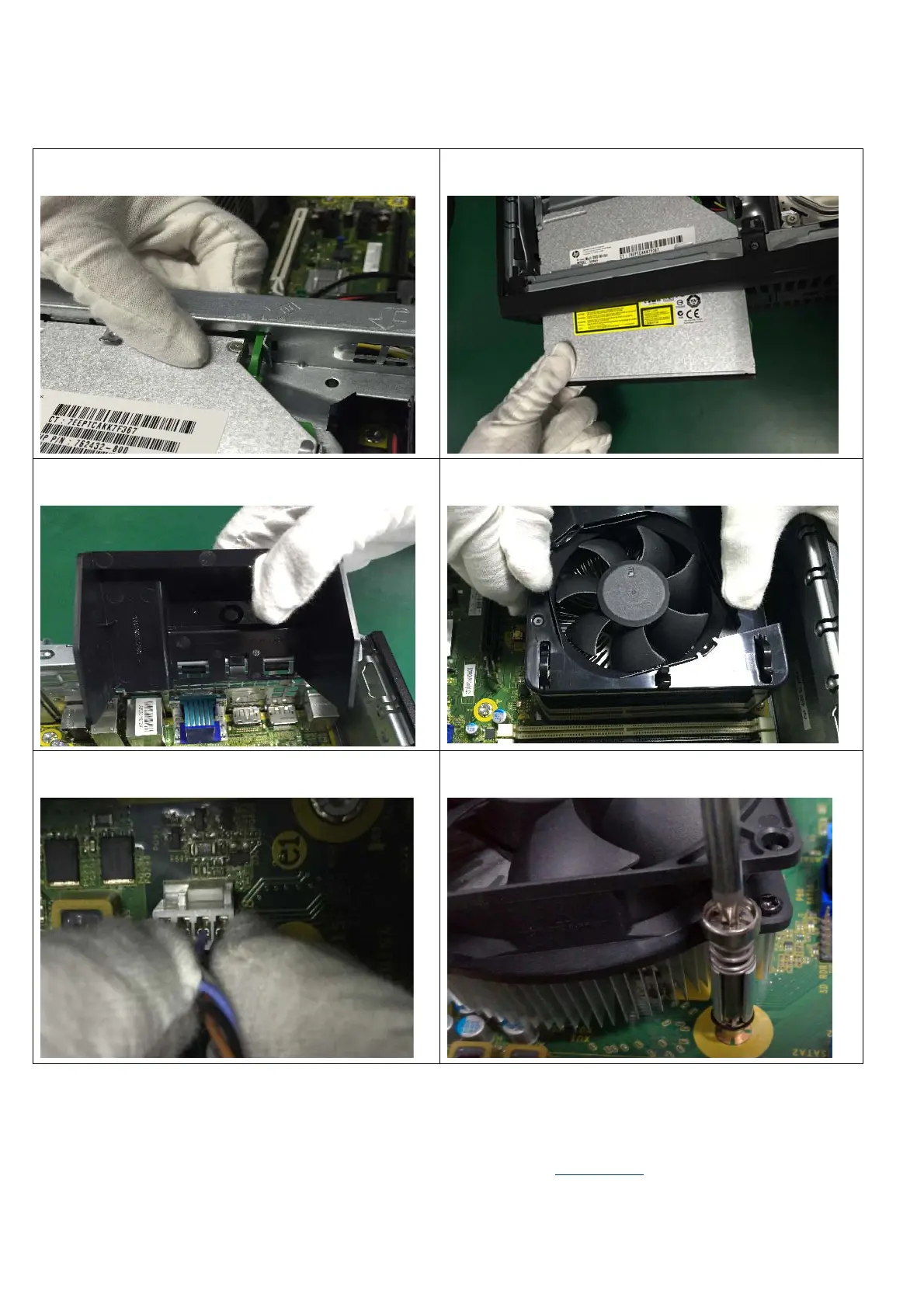

Figure 19 Press the ODD’s latch on ODD cage
Figure 20 Remove the ODD from ODD cage
Figure 21 Rotate the Fan duct 01 and remove it
Figure 22 press the hook and remove fan duct 02
Figure 23 Disconnect heat sink fan cable from MB
Figure 24 Loose the screws and remove heat sink
