Mechanical Instructions

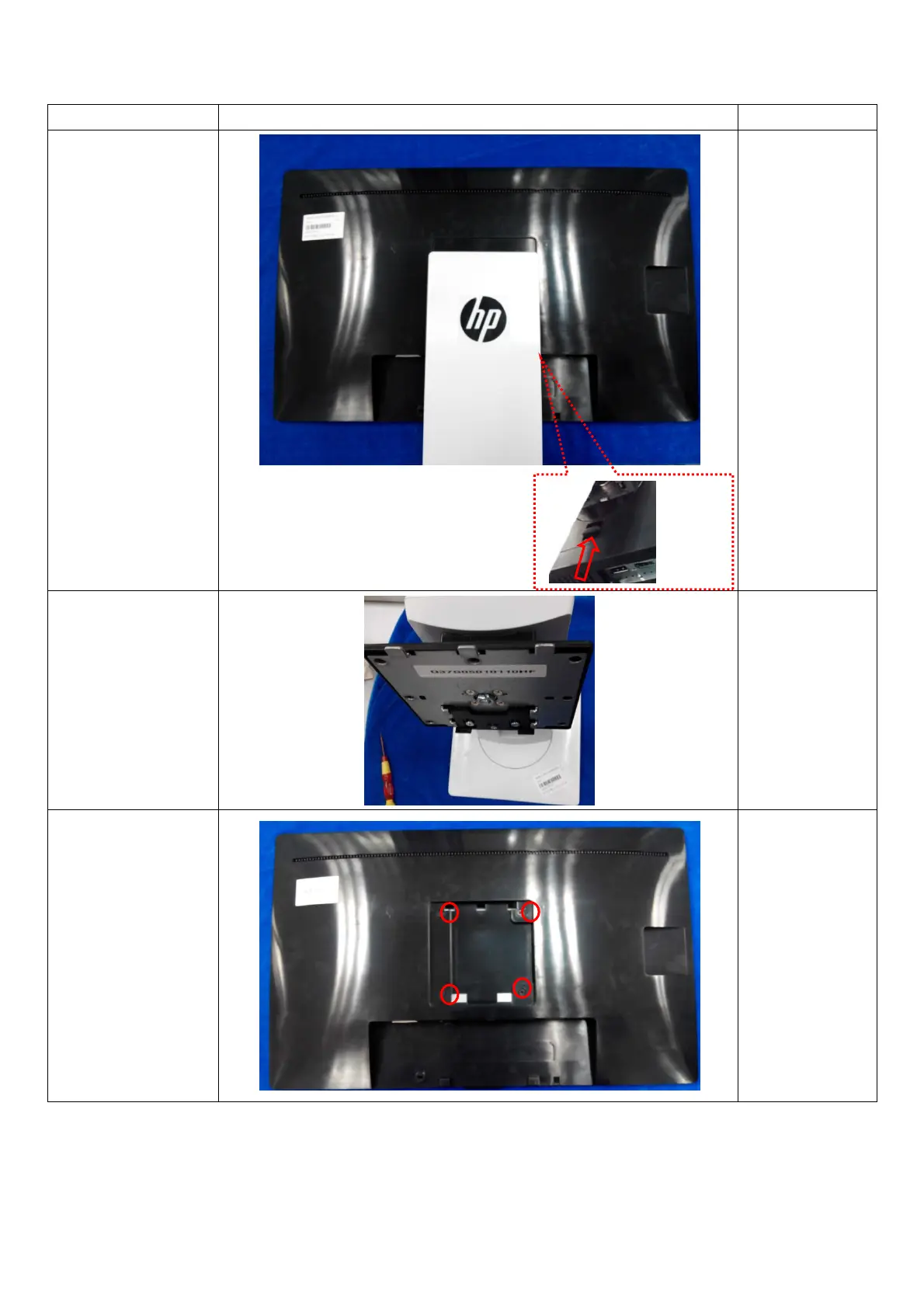

Step Figure Description
Remove the
HINGE ASS'Y
Press the button
to remove the
hinge assy
The HINGE
ASS'Y
The HINGE
ASS'Y
Remove the
REAR_COVER
Remove the
screws first.
