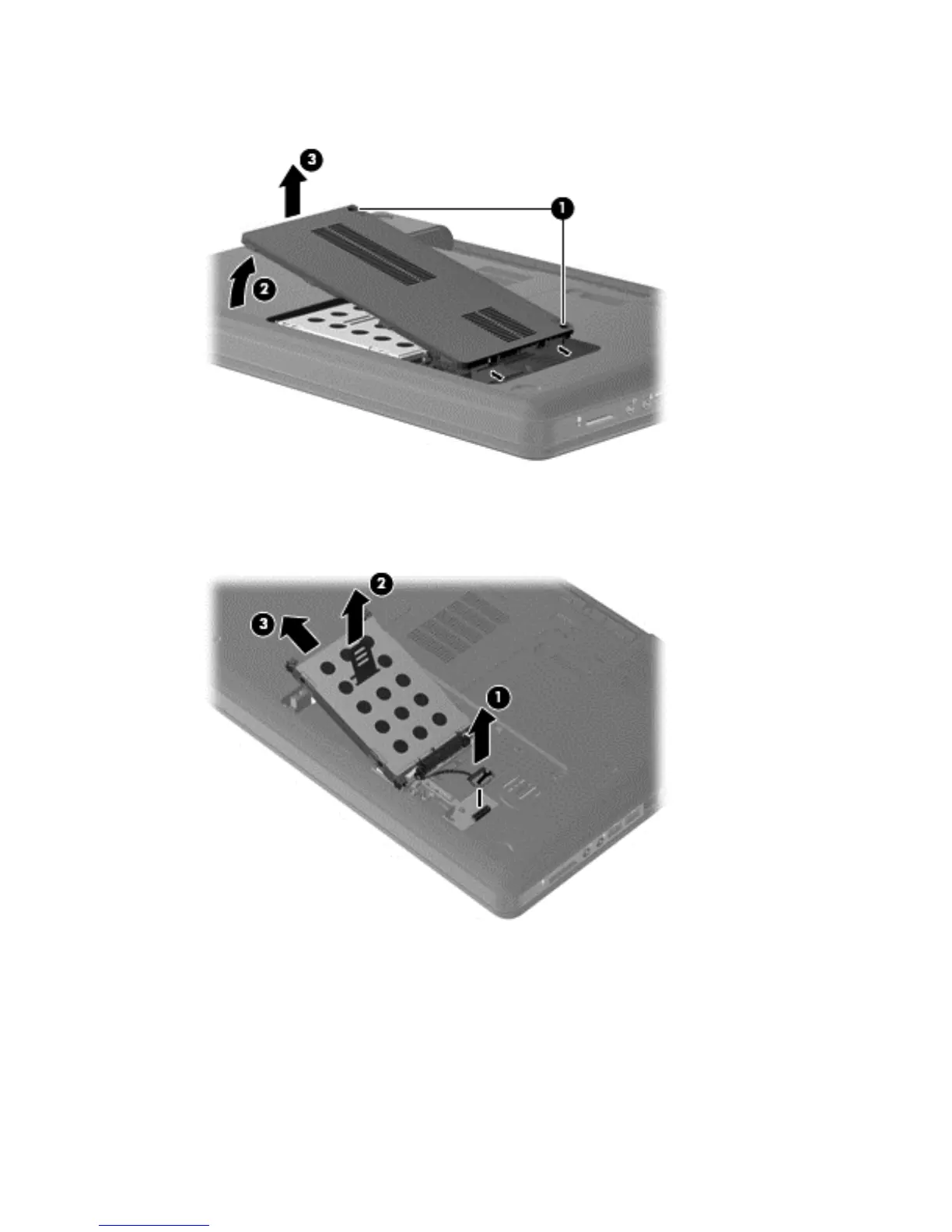

3. Lift the left side of the hard drive cover (2), swing it forward, and remove the cover (3). The hard
drive cover is included in the plastics kit, spare part number 606006-001.
4. Disconnect the hard drive cable from the system board (1).
5. Use the mylar tab on the hard drive bracket to move the hard drive to the right (2) bracket to lift
the hard drive out (3) of the hard drive bay.
6. To replace the hard drive bracket, remove the four Phillips PM3.0×4.0 screws (1) that secure the
hard drive bracket to the hard drive
Component replacement procedures 43
