USB board
Description Spare part number
USB board 606011-001
Before removing the USB board:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn on
the computer, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first disconnecting the power cord from the AC
outlet and then disconnecting the AC adapter from the computer.
4. Remove the battery (see
Battery on page 41).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 42)
b. Optical drive (see
Optical drive on page 45)
c. Keyboard (see
Keyboard on page 53)
d. Top cover (see
Top cover on page 56)

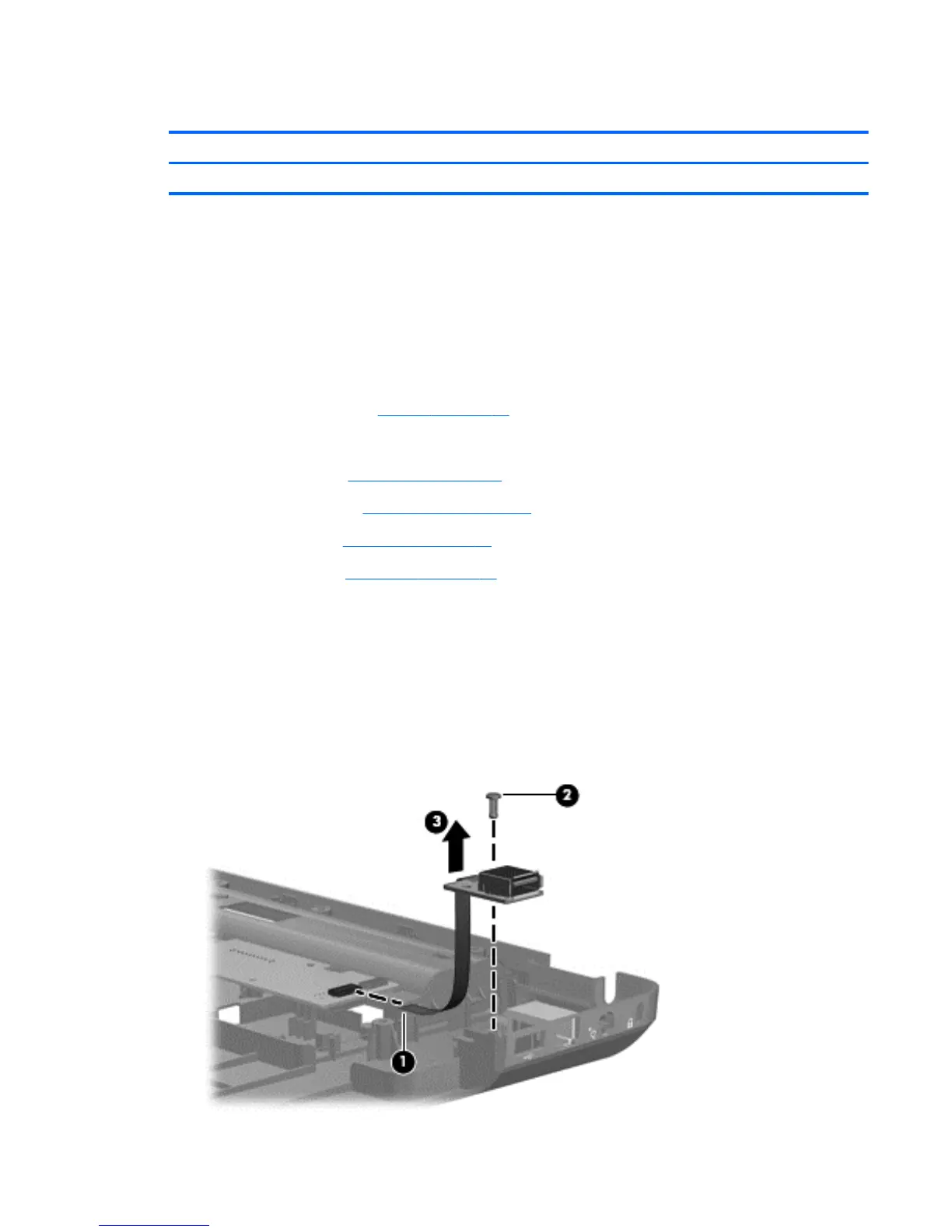

Remove the USB board:
1. Position the computer upright with the right side toward you.
2. Disconnect the USB board cable (1) from the system board.
3. Remove the Phillips PM2.5×6.0 screw (2) that secures the USB board to the base enclosure.
4. Lift the USB board (3) straight up to remove it from the computer. The USB cable is available
with the cable kit using spare part number 606009-001
Component replacement procedures 65
