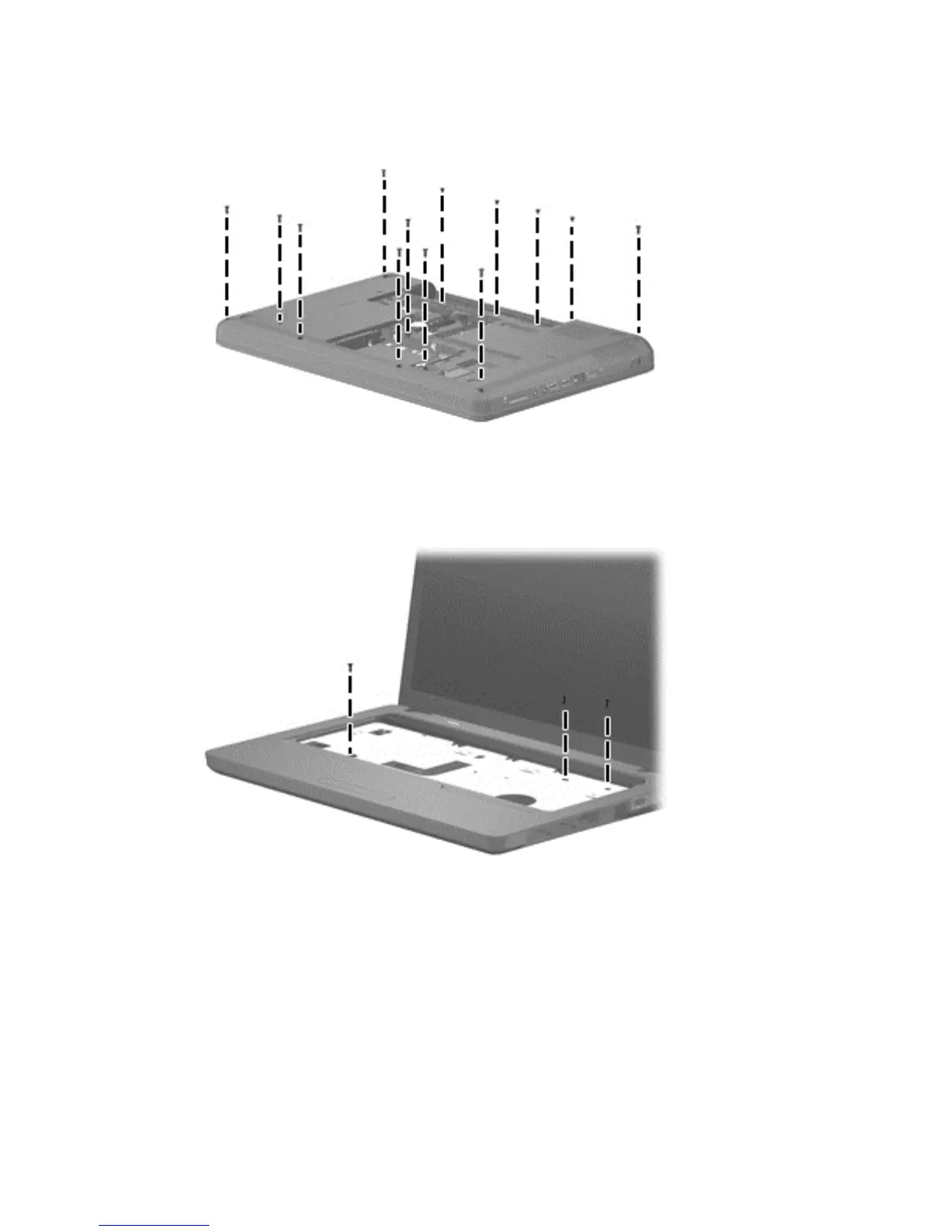

2. Remove four Phillips PM2.5x3 screws in the battery bay, and remove nine Phillips PM2.5x6.5
screws on the base enclosure. The top cover screws are identified by a triangle icon embossed
on the base enclosure.
3. Turn the computer display-side up with the front toward you.
4. Open the computer as far as possible.
5. Remove the three Phillips PM2.5×6.0 screw that secures the top cover to the computer.
Component replacement procedures 57
