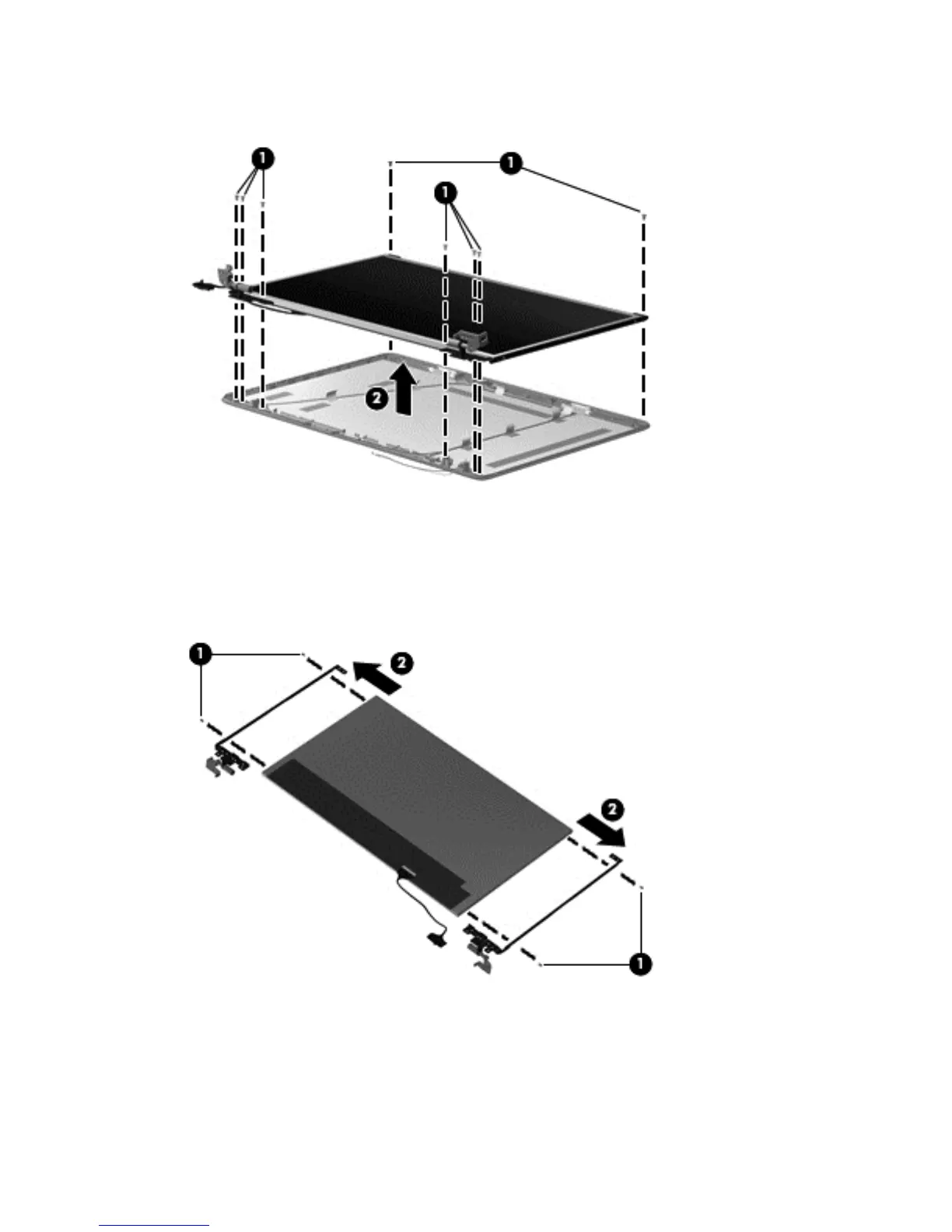

16. Remove the display panel (2) from the display enclosure. The display panel is available using
the spare part number 606003-001.
Reverse this procedure to install the display panel.
17. To replace the display panel brackets, remove the two Phillips PM2.0×3.0 screws (1) that secure
each bracket to the display panel.
18. Remove the display panel brackets (2) from the display panel. The display panel brackets are
available using spare part number 605915-001.
Reverse this procedure to install the display panel brackets.
19. To replace the wireless antenna transceivers, lift up on the silver transceiver (1) and release the
adhesive material from the display cover (2).
72 Chapter 4 Removal and replacement procedures
