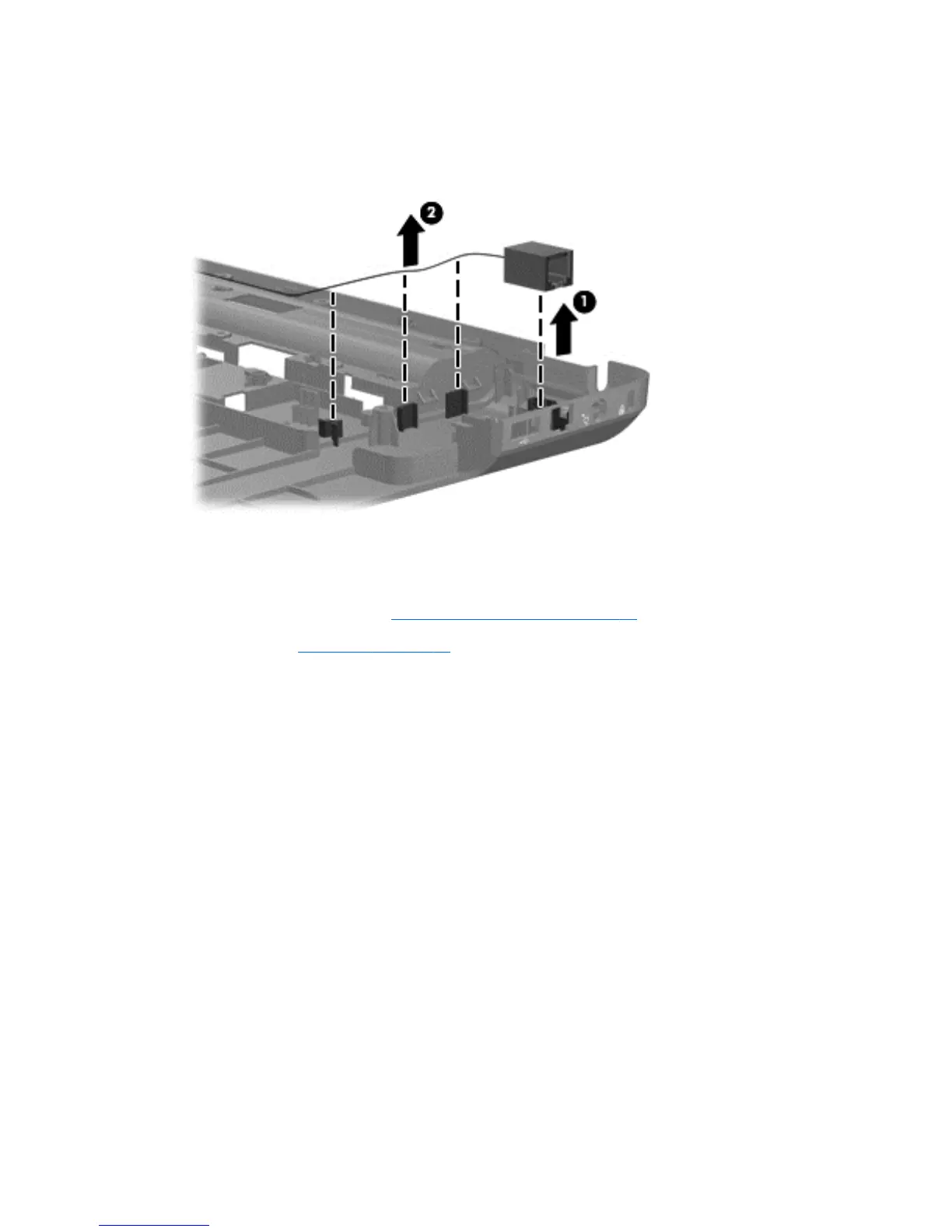

5. To replace the modem module cable, remove the RJ-11 connector cable from the clips (1), and
then lift the connector straight up (2) and out of the computer. The modem module cable is
available with the cable kit using spare part number 606009-001.
Reverse this procedure to install the modem module cable.
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Fan/heat sink assembly (see
Fan/heat sink assembly on page 77)
●
Processor (see
Processor on page 81)
Reverse the preceding procedure to install the system board.
76 Chapter 4 Removal and replacement procedures
