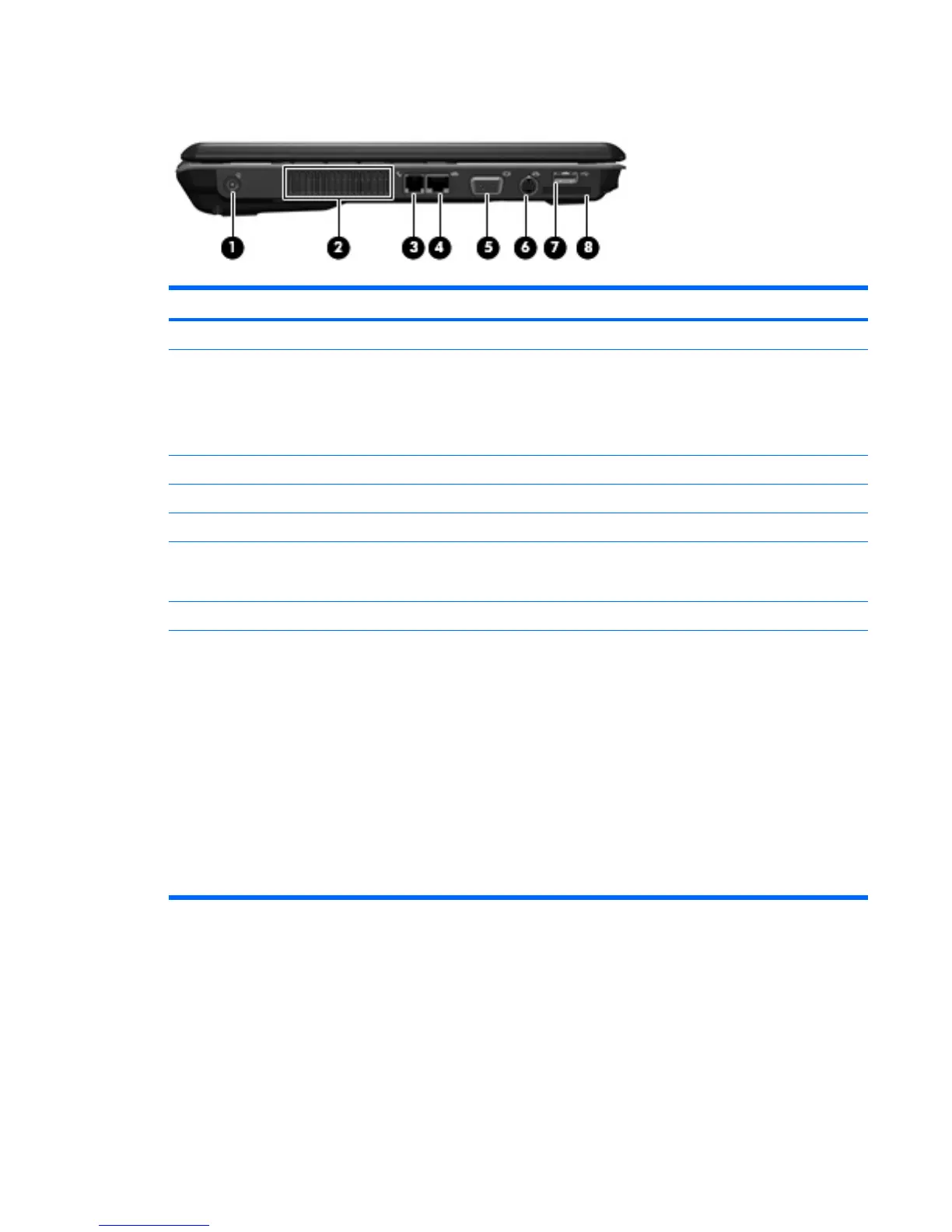

Left-side components
Item Component Function
(1)
Power connector Connects an AC adapter.
(2)
Vents (4) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(3)
RJ-11 (modem) jack Connects a modem cable.
(4)
RJ-45 (network) jack Connects a network cable.
(5)
External monitor port Connects an external VGA monitor or projector.
(6)
S-Video-out jack Connects an optional S-Video device such as a television,
VCR, camcorder, overhead projector, or video capture
card.
(7)
USB port Connects optional USB devices.
(8)
Digital Media Slot Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital Input/Output (SD I/O)
●
Secure Digital (SD) Memory Card
●
xDPicture Card (XD)
●
xD-Picture Card (XD) Type H
●
xD-Picture Card (XD) Type M
Left-side components 11
