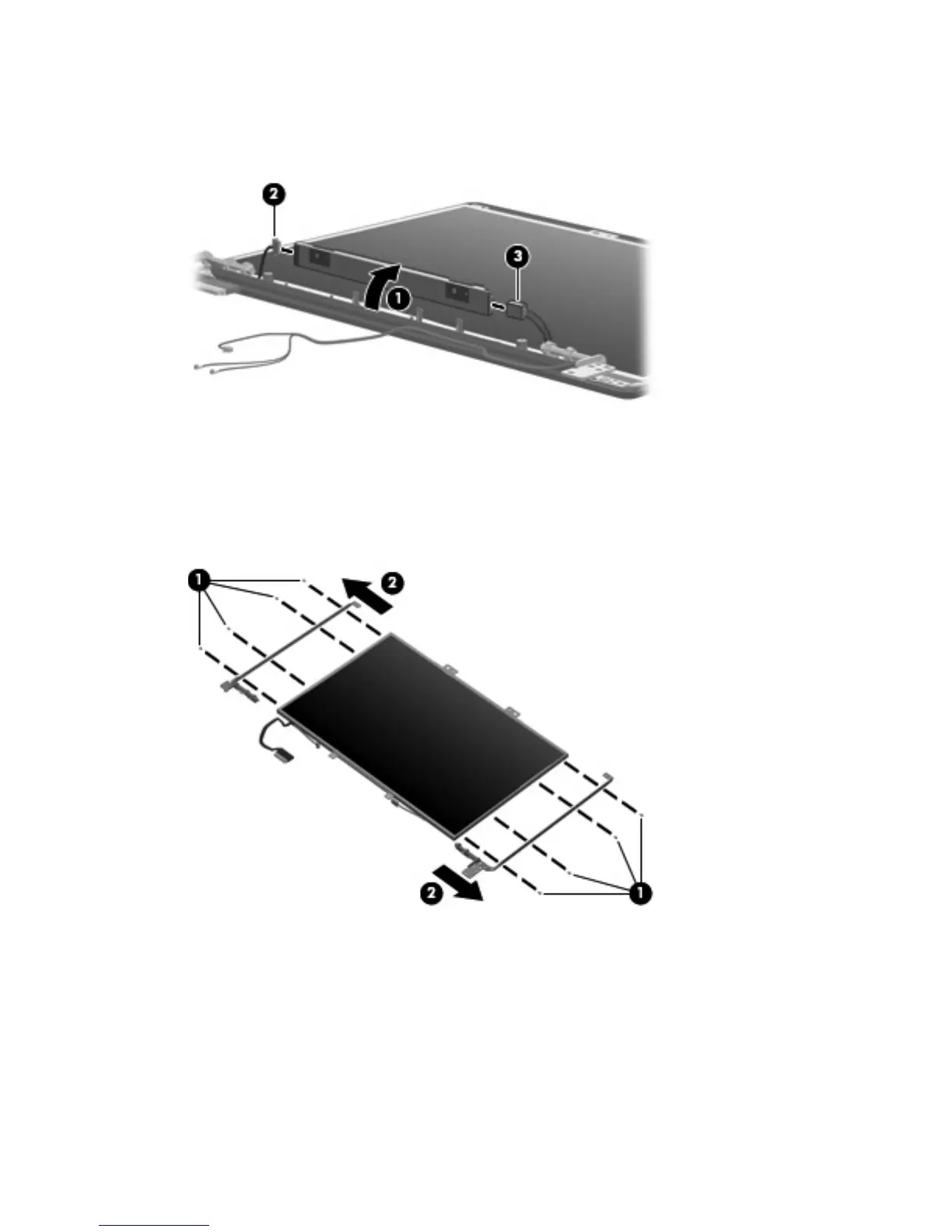

9. If it is necessary to replace the display inverter, release the inverter (1) as far as the display panel
cable and the backlight cable will allow.
10. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
11.
Remove the inverter. The display inverter is available using spare part number 454915-001.
12. If it is necessary to replace the display hinges, remove the four Phillips PM2.0×4.0 screws (1) that
secure each hinge to the display panel.
13. Remove the display hinges (2) from the display panel. The display hinges are available using spare
part number 454916-001.
14. If it is necessary to replace the display panel, remove the six Phillips PM2.5×4.0 screws (1) that
secure the panel to the display enclosure.
58 Chapter 4 Removal and replacement procedures
