Removal and replacement procedures 4–36

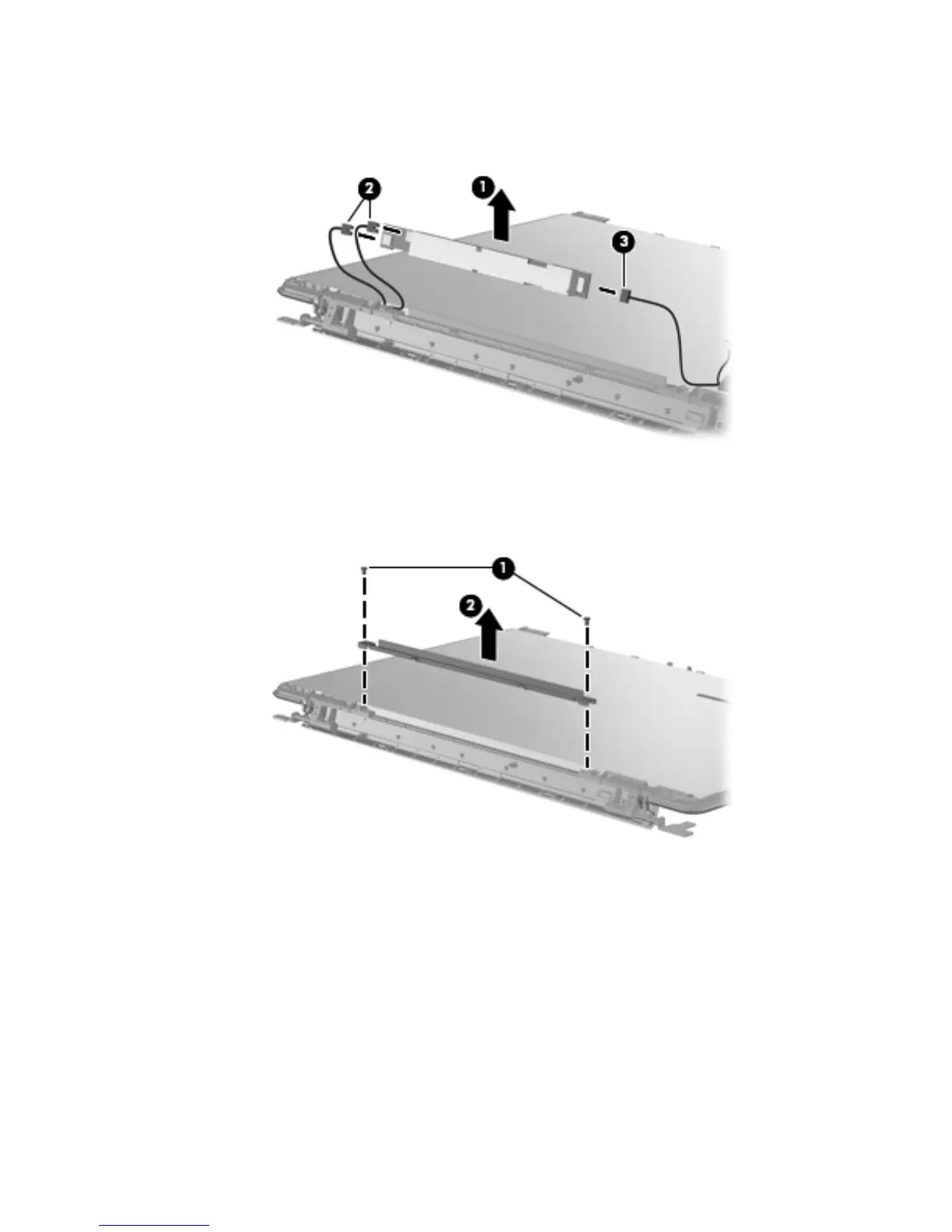

25. If it is necessary to replace the display inverter, release the display inverter 1 as far from the display bezel as
the backlight cables and display panel cable allow.
26. Disconnect the two backlight cables 2 and the display panel cable 3 from the display inverter, and remove the
display inverter. The display inverter is available using spare part number 498324-001.
27. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws 1 that secure the
display hinge bracket to the display bezel.
28. Remove the display hinge bracket 2.
