HP-97 Assembly-Level Maintenance
Battery door latch removal/replacement.
Bottom case assembly removal.
Rubber feet replacement.
Printer assembly removal.
Logic printed-circuit assembly removal.
Support plate assembly removal.
Card reader assembly removal/replacement.
Keyboard printed-circuit assembly removal.
Spacers, spring strips and slide switch replacement.
Key and key spring replacement.
Paper advance switch assembly replacement.
o
. . .
H X
GG
S0@
0
Q0
T
-—
o

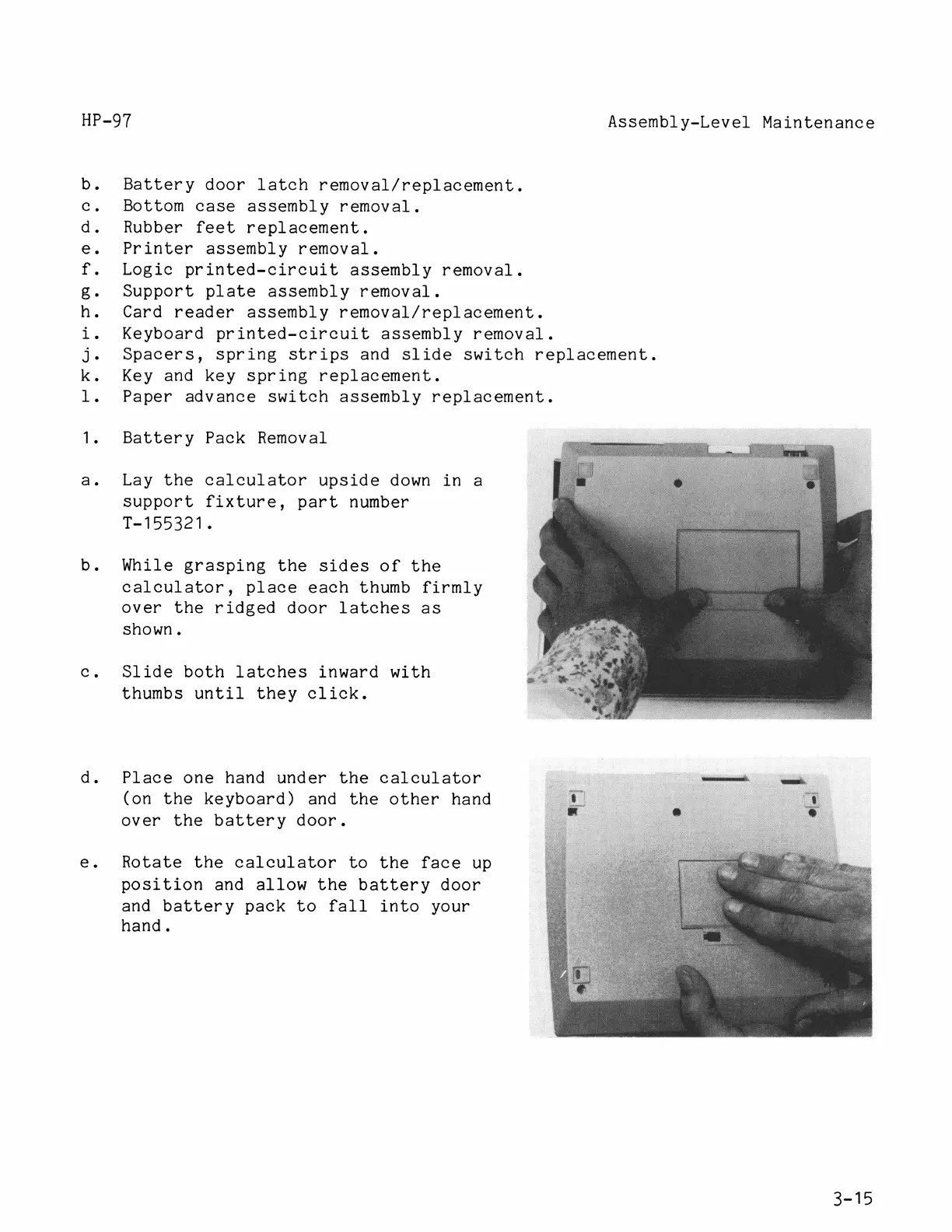

Battery Pack Removal
a. Lay the calculator upside down in a
support fixture, part number
T-155321.
b. While grasping the sides of the
calculator, place each thumb firmly
over the ridged door latches as
shown.
c. JSlide both latches inward with
thumbs until they click.
d. Place one hand under the calculator
(on the keyboard) and the other hand
over the battery door.
e. Rotate the calculator to the face up
position and allow the battery door
and battery pack to fall into your
hand.
