HP J8697A Planning And Implementation Guide

4-13
Planning and Implementation for the Series 5400zl Switch
Planning Your PoE Configuration
Planning and
Implementation for the
Series 5400zl Switch

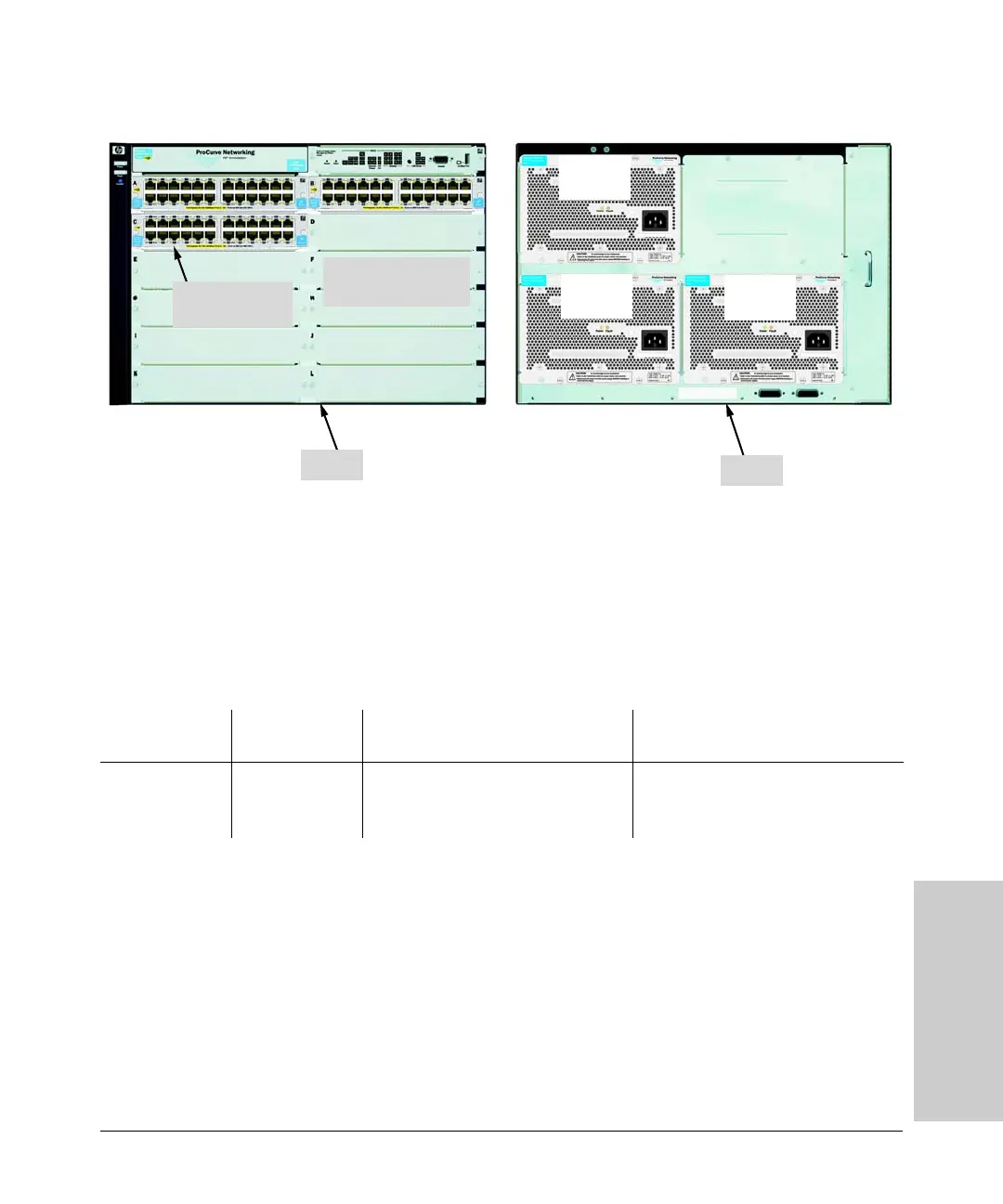

Figure 4-9. Example of a 5412zl with three power supplies, J8712A
In this example there are three power supplies supplying 273 watts each for
a maximum of 819 watts.
To achieve the 53 ports at 15.4 watts the PoE devices must be divided up and
connected to three different modules. Remember, as soon as a module is
installed into the switch, 22 watts is reserved for its use.
In this configuration one power supply (273 watts) could be used for
redundant power. However, remember it can only support a limited number
of ports depending on the wattages that are being supplied to the ports.
53 ports can receive up
to 15.4 watts of PoE
273 Watts
for PoE
273 Watts
for PoE
273 Watts
for PoE
Back
Front
5 ports must be used
on this module
Source of Power Watts Available # of Ports Powered and Average Watts/
Port
Redundant # of Ports Powered and
Average Watts/Port
Three Internal
Power Supplies
(J8712A)
819 (without
redundancy)
• 53 @ average 15.4 W each
• 117 @ average 7.0 W each
• 204 @ average 4.0 W each
• 17 @ average 15.4 W
• 39 @ average 7.0 W each
• 68 @ average 4.0 W each

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
