HP J8697A Planning And Implementation Guide

4-16
Planning and Implementation for the Series 5400zl Switch
Planning Your PoE Configuration
Planning and
Implementation for the
Series 5400zl Switch

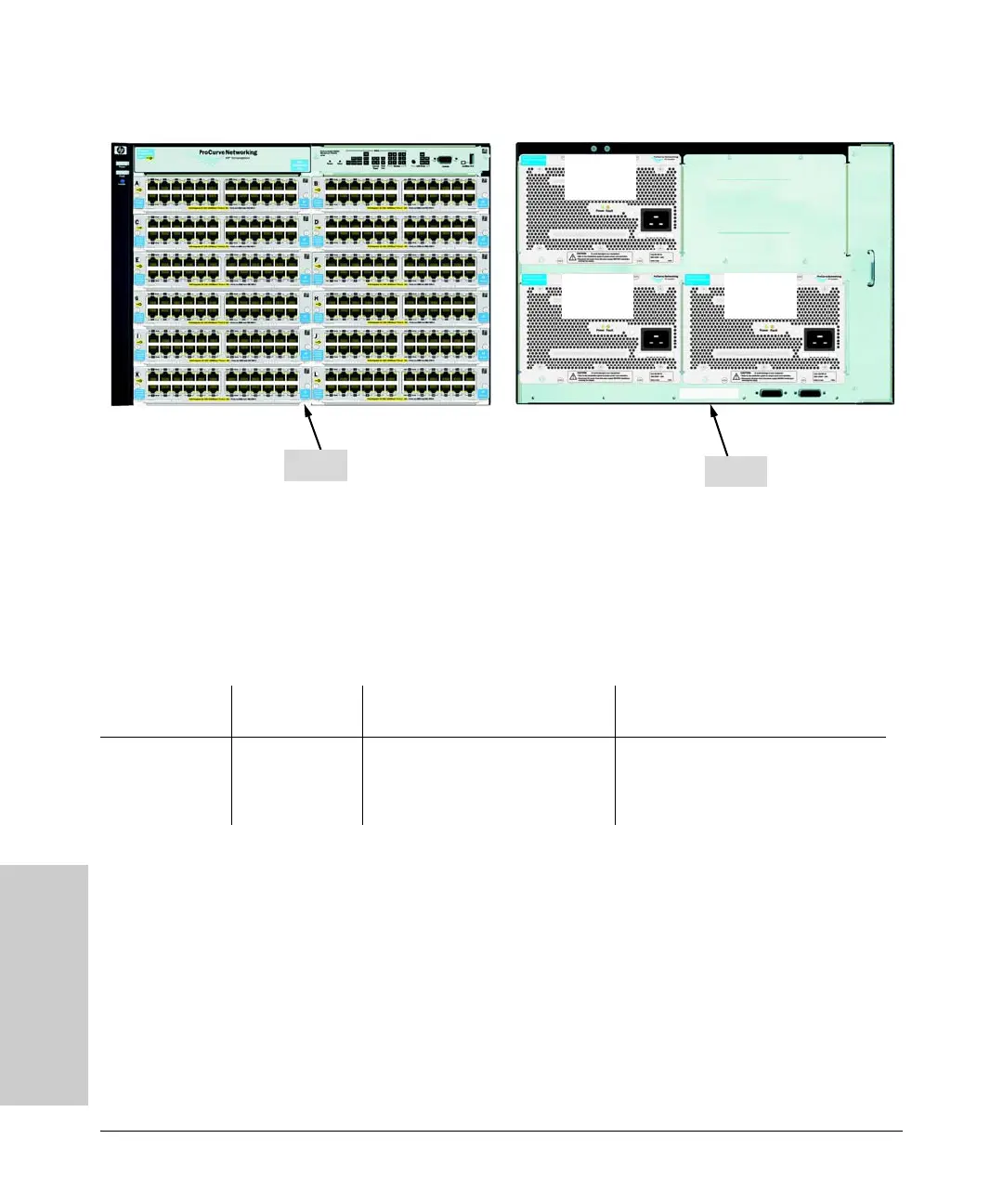

Example of a 5412zl with three power supplies, J8713A
This configuration is an example of three power supplies supplying 900 watts
each for a maximum of 2700 watts to a fully loaded chassis of 288 ports.
Therefore out of the total 288 available ports, 175 can be powered at 15.4 watts
each. That’s equal to a little over 6 and a half modules. Or all ports could be
used at 7.0 watts.
Or, two power supplies could be used to supply PoE power at 1800 watts and
the other one power supply could be held in reserve as redundant power
supply if one of the primary power supplies fail. However this configuration
cannot be fully redundant.
Back
Front
900 Watts
for PoE
900 Watts
for PoE
900 Watts
for PoE
Source of Power Watts Available # of Ports Powered and Average
Watts/Port
Redundant # of Ports Powered and
Average Watts/Port
Three Internal
PoE Power
Supplies
(J8713A)
2700 (without
redundancy)
• 175 @ average 15.4 W each
• 288 @ average 7.0 W each
• 288 @ average 4.0 W each
• 58 @ average 15.4 W each
• 128 @ average 7.0 W each
• 225 @ average 4.0 W each

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
