Planning and Implementation for the Series 5400zl Switch
Planning Your PoE Configuration
Planning and
Implementation for the
Series 5400zl Switch

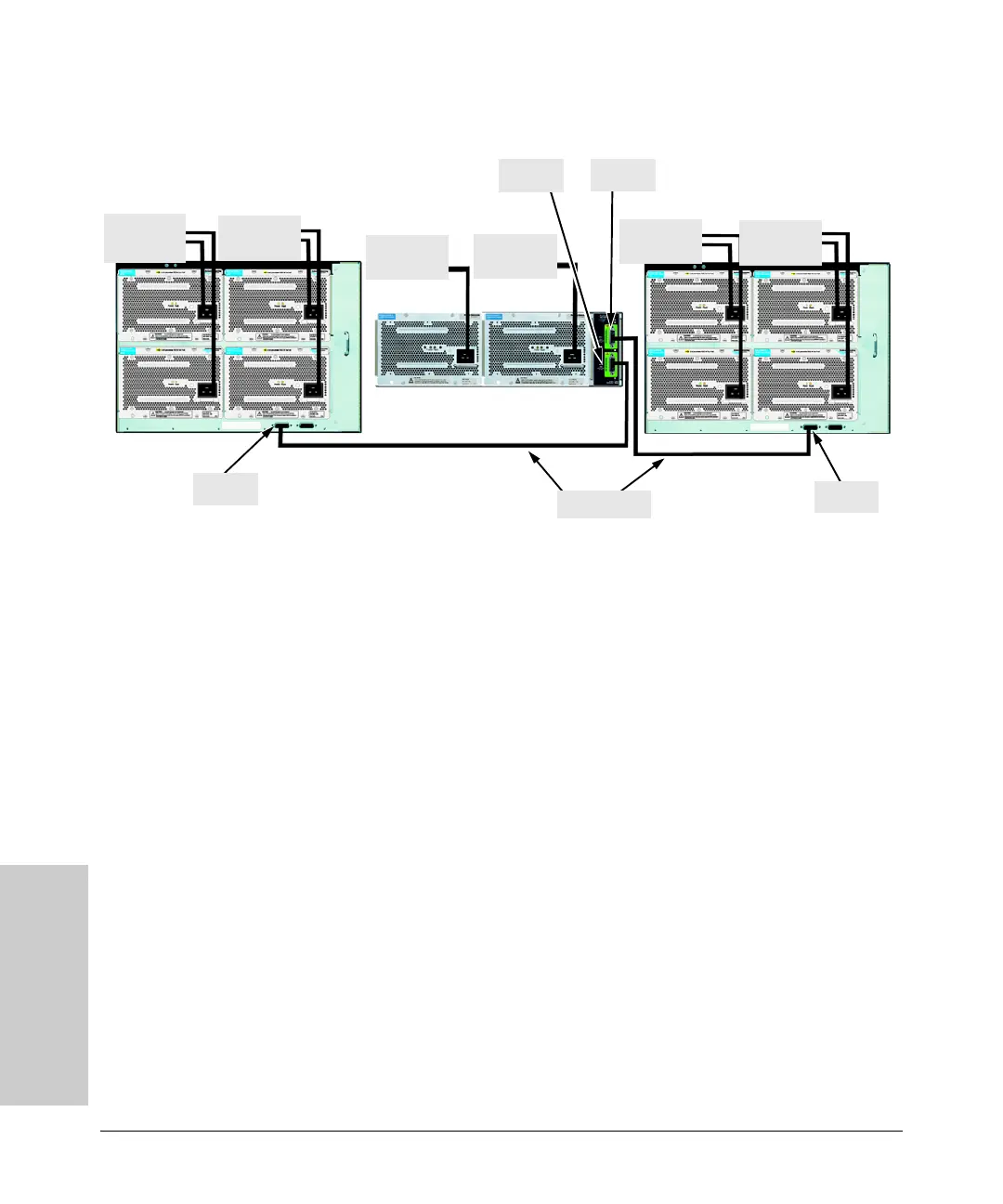

Figure 4-17. Connecting the EPS to two 5412zl switches
In this configuration EPS 2 of the Power Supply Shelf can be connected to
either EPS 1 or EPS 2 of the switch.
As shown in figures 4-16 and 4-17 the Power Supply Shelf can be connected
to the 5412zl to supply extra or redundant PoE power to the PoE modules
installed in the 5412zl.
To Po we r
Source
To P o we r
Source
To Po we r
Source
To P ow er
Source
To Po we r
Source
To Po we r
Source
EPS Cables
EPS 1
EPS 1
EPS 2
EPS 1

HP J8697A Specifications

General

Ports	24
Form Factor	Rack-mountable
Power Supply	Internal
Management	Managed
VLAN Support	Yes
Jumbo Frame Support	Yes
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
Model	HP J8697A
Port Type	10/100/1000BASE-T
Layer	Layer 2
