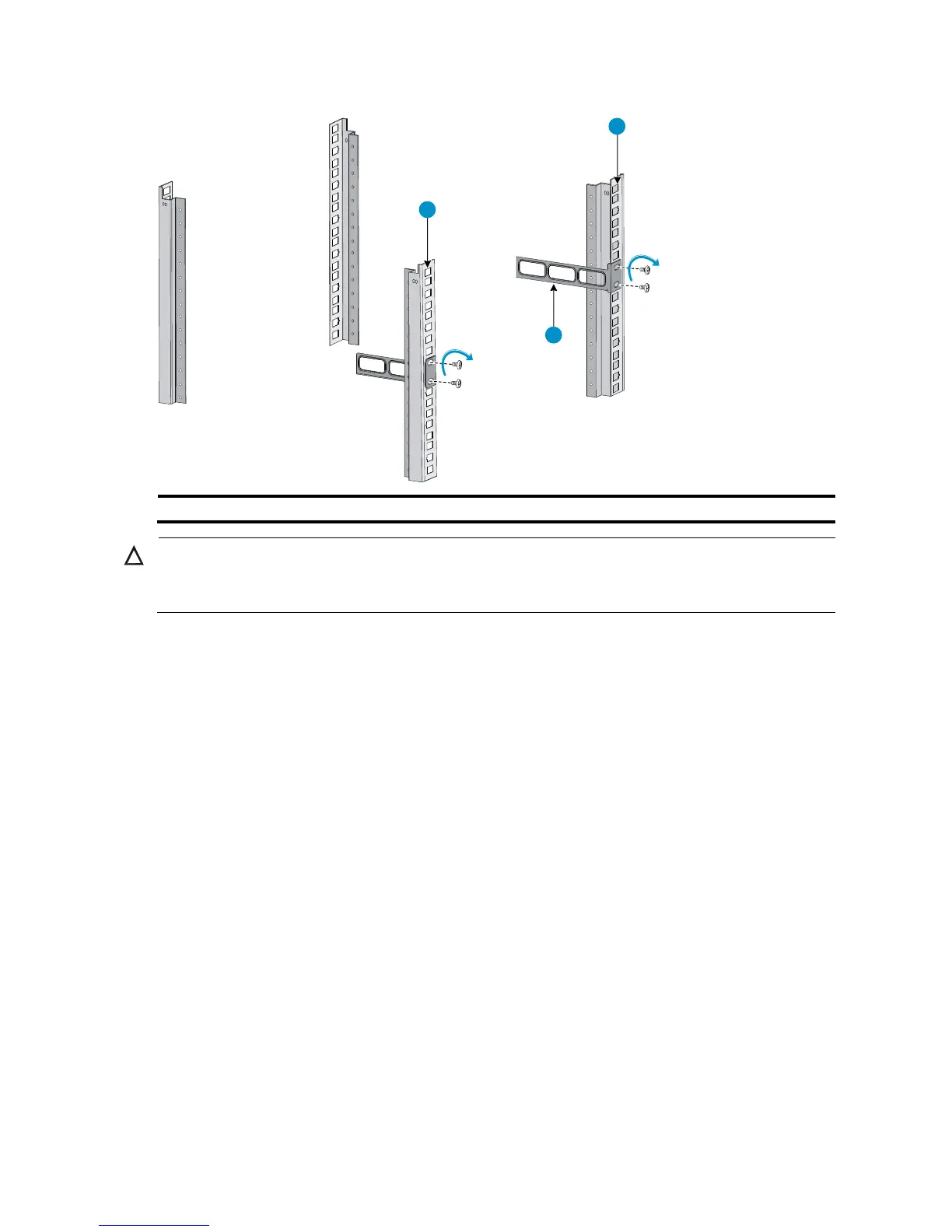

Figure 23 Mount the switch to the rack by using rear mounting brackets
1
2
1
(1) Rack posts
(2) Rear mounting bracket
CAUTION:
Make sure the thinner edge of the rear mounting bracket faces upwards to ensure that the mounting
bracket can make close contact with the load-bearing screws.
7. Supporting the switch bottom with one hand, use the other hand to push the switch into the rack until
the load-bearing screws on the switch make close contact with the upper edge of the rear mounting
bracket. See Figure 24.
