HP L1502 LCD

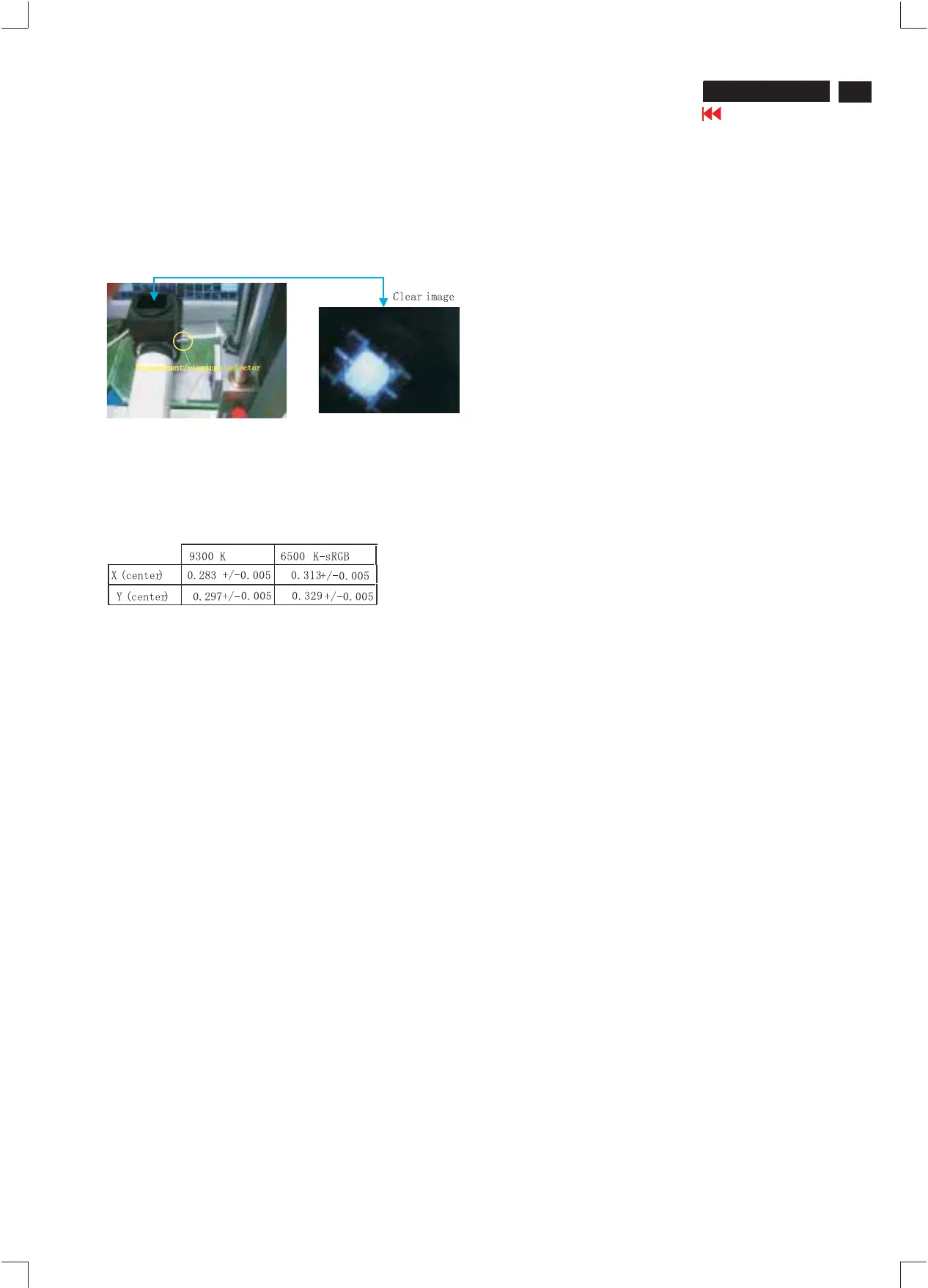

2.6 Switch lightprobetoViewing position.
2.7 Movethe Lens barrel forward or backwardtoget clear imageas
showninFig. 4
2.8 Switch lightprobetoMeasuring position.Itshould beable to
indicate colourvalue onthe CA-110.
Fig.4
2.9PressMENUbuttonstoselectRGBof9300 and 6500.
Increase / decrease value by press UP or DOWN buttons until the
1931 CIE chromaticity ( x, y ) as below.
Alignment hits:
1. R for x value ,Gfory value,BforYvalue onthe colour analyzer.
2. Must to select 9300 in user mode, then 9300 is available in factory
Mode.
3. Must to select 6500 in user mode, then 6500 is available in factory
Mode.
3.1 Factory Reset
Afterfinishing all the adjustment, select “Factory
Reset”functiontorecall:
Do an automatic Auto-Adjustment
Set Brightness = 100
Set Contrast =50
Set Color = 6500K-sRGB
Set Custom Color (R.G.B) = 100
3.2 Main Menu FactoryDefault Values
The OSDshall
havethe followingfactorydefault values:
Language =English
OSD Cotrol:
Horizontal OSDposition =50
Vertical OSDposition =50
OSDtimeout =30s
Management:
PowerSaver=ON
PowerOn Recall =ON
Mode display =OFF
Sleep Timer=OFF
Menu =B
ASIC
