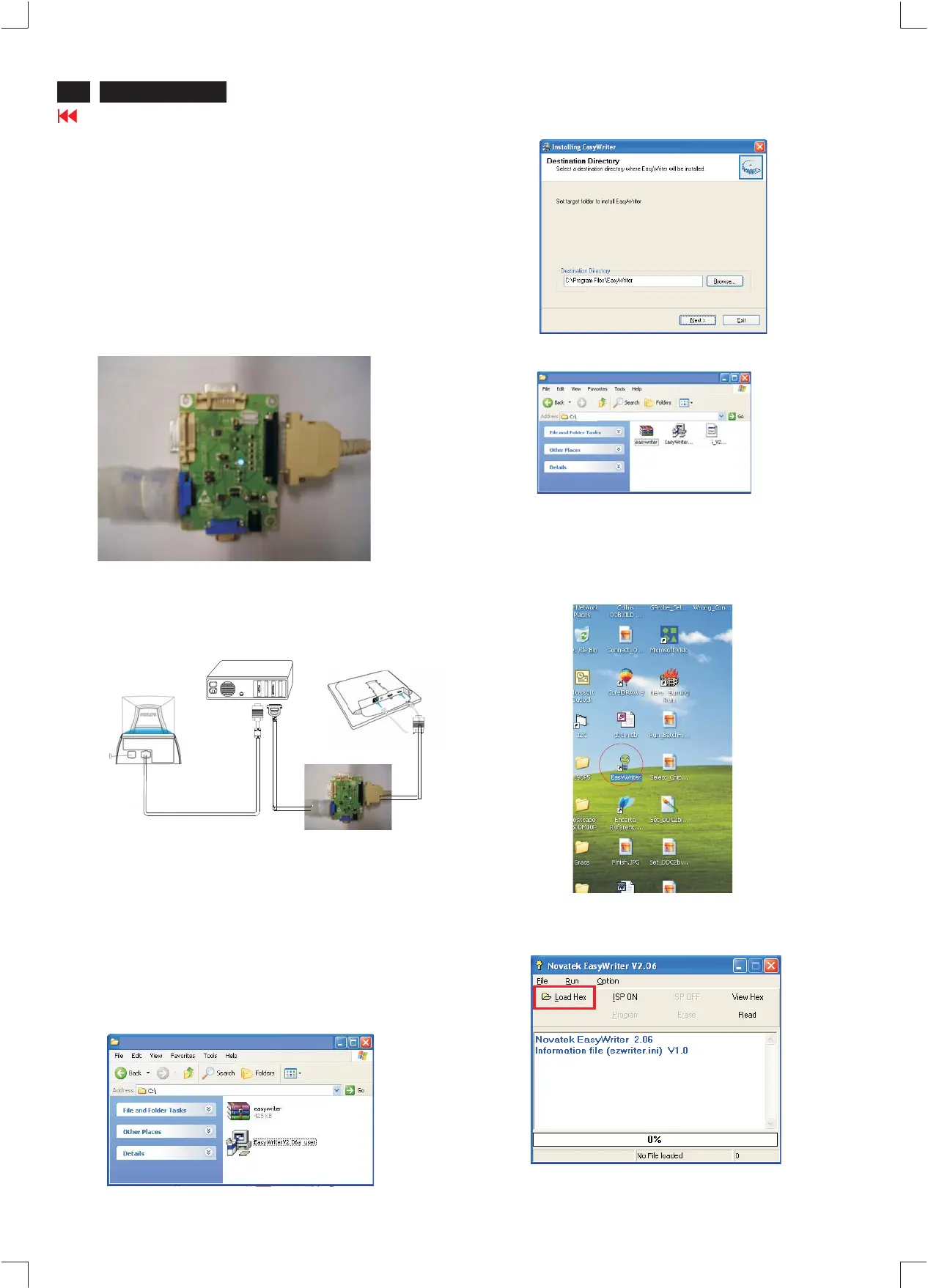

Update the firmware
1. DoubleclicktheEasywriter.exeiconindesktopthenappears
window as shown in Fig.7 .
Step 5 :Copy the V200.hex to C:\1502 as shown in Fig. 5 .
26
6. Install and setup the Easywriter program
Step 1 : Make a folder in your PC as shown in Fig. 3.
For example : C:\1502
Step 2 : Copy ISP Software Easywriter into your folder
as shown in Fig.3.
Step 3 : Unzip Easywriter.zip into your folder as shown in Fig. 3.
Step 4 : Double click the EasywriterV2.06a_user.exe icon to install the
Application as Fig. 4.
.zip
Configuration and procedure
"Easywriter " The software
DDC2BI_ISP TOOL (3138 149 53161)
is provided by Novatek to upgrade the
firmware of CPU.
is for the interface between
"Parallel Port of PC" and "15 pin-D-SUB connector of Monitor".
It is a windows-based program, which cannot be run in MS-DOS.
System and equipment requirements
1. An i486 (or above) personal computer or compatible.
2. Microsoft operation system Windows 95/98/2000/XP.
4. as shown in Fig. 1
3. ISP Software " Easywrite "
DDC2BI_ISP TOOL (3138 149 53161)
5 Connect and Mains cord to Monitor as shown
in Fig. 2.
. DDC2BI_ISP TOOL
Fig.2
PC
To printer port (LTP1)
To video card
Video cable
Connect to
Mains cord
Monitor (A)
Hp1502 -Monitor (B)
ISP box
D-Sub
Connect to Mains
cord at this moment.
------------------------------->
Fig. 1
Fig. 4
Fig. 5
Fig. 6
Fig. 7
HP L1502 LCD
Go to cover page
ParallelPorttoPrintPortinPC
D-SUB to monitor
Firmware Update for CPU Novatek NT68F633L
170S5
1502
170S5
1502
Hp1502
