HP L1502 User Manual

3
HP L1502 LCD
Go to cover page

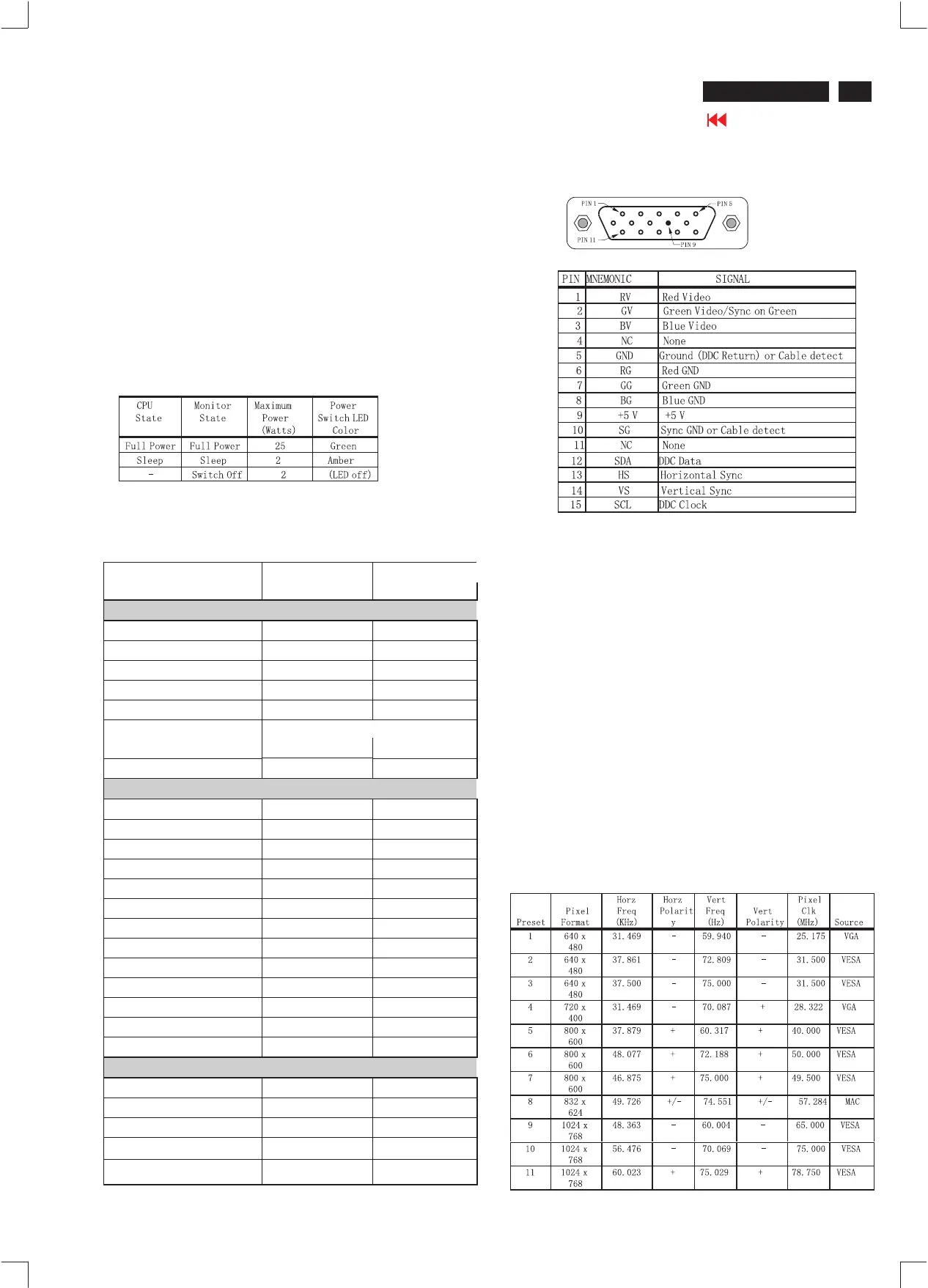

Technical Data
LCD
Vendor LGPL CPT
Updateddate 2002-Aug-30 2002-Dec.-1 3
Physical Dimension (mm)
Model Number LS150X08 CLAA150XP01
Diagonal Size--- inch 15.0" 15.0"
Active Area (WxH) 304.1x228.1 304.1x228.1
DisplayPixels(WxH) 1024(x3) x 768 1024(x3) x 768
Pixel Pitch (0.099x3) x 0.297 (0.099x3) x 0.297
DisplayOutline (WxHxT )
326.0x253.5x11.2
326.5x253.5x11
Weight 1000g 1060g
Optical Characteristics
NumberofColors 6 bits (262K) 6 bits (262K)
Contrast Ratio 400(typ),250(min) 500(typ),250(min)
ViewingAngle (L/R)--- C/R>10 65/65(typ) 70/70(typ)
ViewingAn gle (U/D)--- C/R>10 45/55(typ) 65/65(typ)
Luminance--- nits 250(typ),200(min) 250(typ),200(min)
White (x,y) 313,329 313, 329
Red(x,y) 631,347 641,345
Green (x,y) 309, 583 305,567
Blue (x,y) 150,088 140, 88
Color Gamut -- % 59.5% 65%
Luminance Uniformity(min) 75% 75%
Backlight Life (min) 40Khrs 35Khrs
Crosstalk(max) 1.20% 1.5%
Electrical Characteristics
SupplyVoltage 3.3V 3.3V
Operating Ambient Temp 0~50C 0~55C
PowerConsumption (max) 10.4W 12.5W
Main Clock(Typ~Max) 65~79MHz 65~80Hz
Responsetime (Tr+Tf) 16ms(typ) 16ms(typ)
P in Assig nment
Unit dimension /Weight
Set Dimension (incl.Pedestal): W340mm xD185.3mmxH338mm.
Newweight: 3.6 Kg
Temperature Ranges
Operating Te mperature (Independent of altitude):5to35DegreeC.
Non-Operating Temperature (Inde
pendent of altitude):-20 to60
DegreeC.
Humidity
Operating(non-condensing) :20%to80%
Non-Operating (38.7Degree Cmaximum wet bulb temperature):
5%to90%
Altitude
Operating:0to 12,000 feet [3,658 m].Equivalent to 14.7 to 10.1 psia.
Non-Operating:0to 40,000 feet
[12,192m.Equivalent to 14.7 to 4.4
psia
FACTORY PRESETDISPLAY MODES
1.3.
Product description
The HP 15 TFT flat panel LCD monitor isspecified as a
displayperipheral with analog videosignal input.
Thisscan range displayresolution up to 1024*768 at 75 Hz
refresh rate. he image can beadjustedbyOS
Dcontrol.
1.1.1 Controls
Front:Rear
- DC powerswitch -VGA cable
-OSD +key-ACcable
-OSD -key
-OSD Menukey
1.1.2 Input signals VGA Analog - Signal inputlevel
Video : 0.7 Vp-p LinearSync : 3V3 and5VTTL level,Separate,
Positive/Negative- Imped
ance
Video: Terminatedwith 75 1 % Sync : Te rminatedwith 2K2
1.2 Destination: AP, CN, EE, LA, ME, S H, WE.
1.3.1 Power supplyMain voltage: 90 – 264 VAC, 47 - 63Hz
Power cord length: 1.8M, IEC C-13/C-14 (Standard) type
Auto powersaving: EPA, Nutek, VESA DPMS
2Scanning
Horizontal Frequency: 30- 61 KHz Vertical Frequency: 56 - 76 Hz
Actual displaysize: 304 x 228 mm Ma
x. resolution: 1024 x 768
