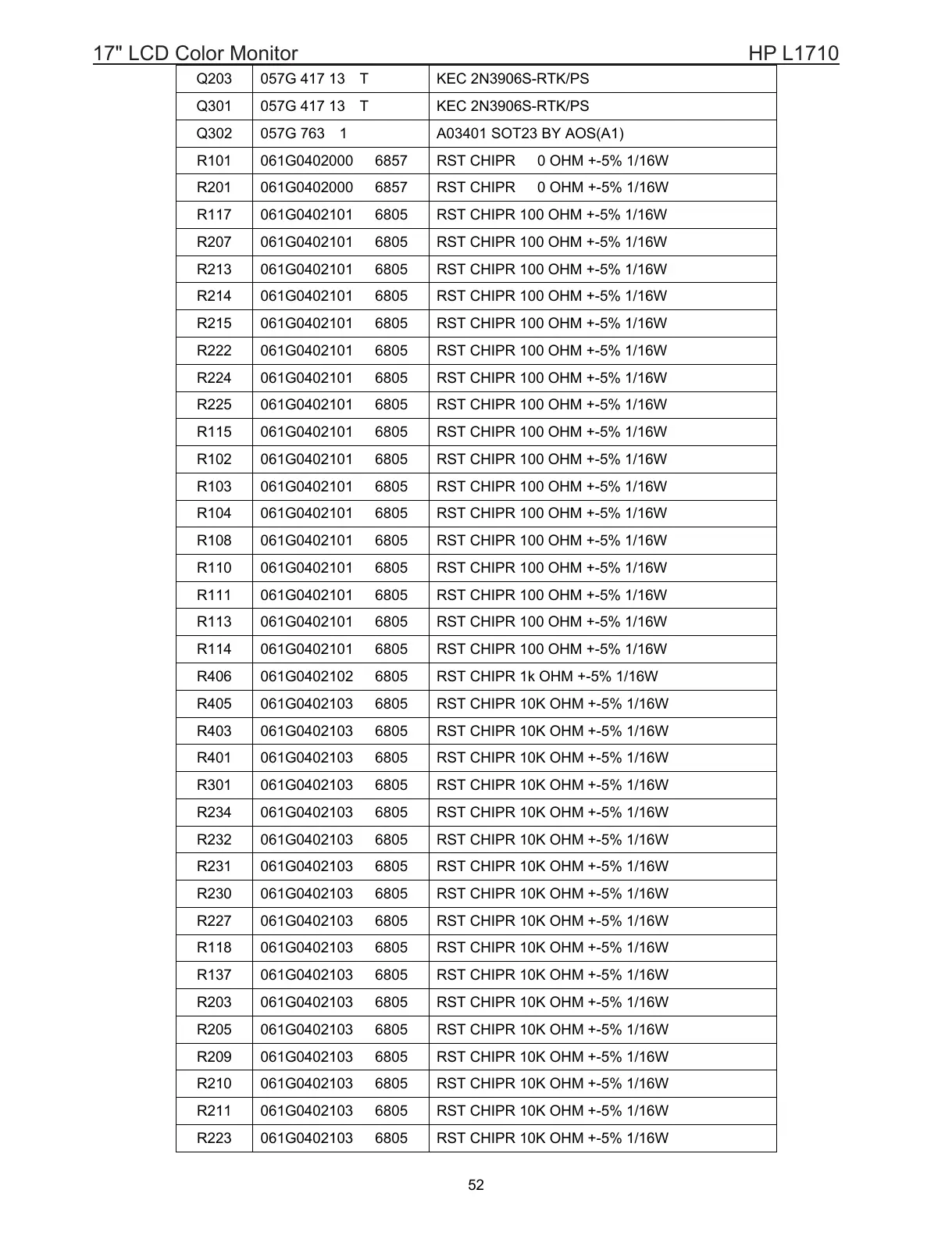

HP L1710 Service Manual

17" LCD Color Monitor HP L1710
52
Q203 057G 417 13 T KEC 2N3906S-RTK/PS
Q301 057G 417 13 T KEC 2N3906S-RTK/PS
Q302 057G 763 1 A03401 SOT23 BY AOS(A1)
R101 061G0402000 6857 RST CHIPR 0 OHM +-5% 1/16W
R201 061G0402000 6857 RST CHIPR 0 OHM +-5% 1/16W
R117 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R207 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R213 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R214 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R215 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R222 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R224 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R225 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R115 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R102 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R103 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R104 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R108 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R110 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R111 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R113 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R114 061G0402101 6805 RST CHIPR 100 OHM +-5% 1/16W
R406 061G0402102 6805 RST CHIPR 1k OHM +-5% 1/16W
R405 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R403 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R401 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R301 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R234 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R232 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R231 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R230 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R227 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R118 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R137 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R203 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R205 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R209 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R210 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R211 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R223 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
